TDF Fire Damper Frame Production Line
Fire damper machine consists of frame production line,positive pressure air supply outlet production line,blades forming machine,supporting bar forming machine,spring forming machine,riveting platform and so on.
Electrical control system of spring forming machine:
PLC: Panasonic of fpx-c30t
True color touch screen: Taiwan Winon
Detection encoder: Japan internal secret control encoder
Servo drive system: Viktor (or invetion) servo drive system
Low voltage electrical appliances: circuit breakers and contactors are domestic famous brand "Chint" electrical appliances, and relays are "Omron" or "Schneider".
HAVC Damper Spring Leaf Roll Forming Machine 0.2mm SS video：

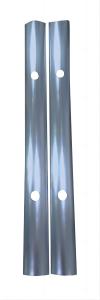

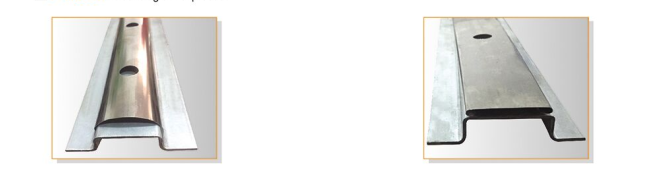

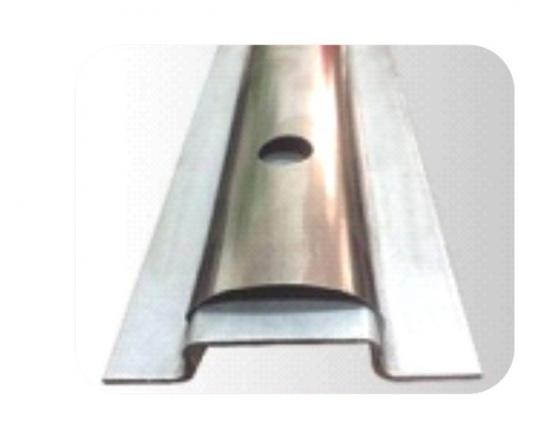

Finished products:

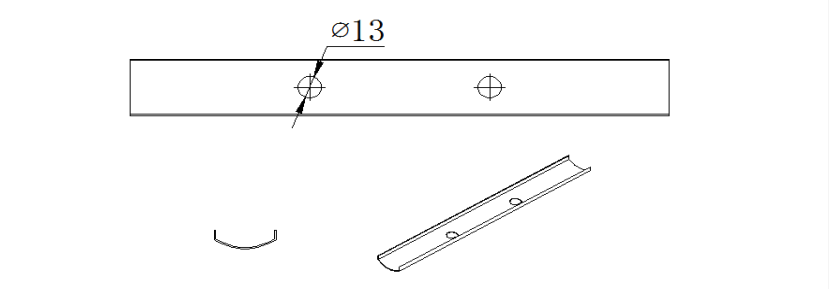

Product drawing:
Description of function:
●Servo driving,full automation operation
●Automatic punching,fixed length cutting
●Free setting punching number and punching space
●Continuous order mode
Basic Part:
●One suit of hydraulic pressure system
Model
Thickness range(mm)
Width(mm)
Max-working speed(m/min)
Coiler weight(kg)
Weight(kg)
Motor(kw)
Dimension(mm)
LC-MF
0.2ss
57
10
2000
4000
12
5000x800x1200
Get A Free Quote
Fire damper machine consists of frame production line,positive pressure air supply outlet production line,blades forming machine,supporting bar forming machine,spring forming machine,riveting platform and so on.
Positive pressure air supply molding machine is composed of uncoiler, cold rolling molding machine, straightening, shaping, cutting with fixed length, punching and manual discharging.
The blade forming machine for fire damper machine adopts PLC control, LCD touch screen, human-computer interface. Realize the interaction between human and Panasonic PLC. The operator can automatically run (programmable control) and monitor the control process through the set program, so as to realize the operator to control the production line and modify the control parameters, and monitor the equipment operation status, operation parameters and fault indication in real time. The length of the work piece can be adjusted.
The supporting bar machine for fire damper machine adopts PLC control, LCD touch screen, human-computer interface. Realize the interaction between human and Panasonic PLC. The operator can automatically run (programmable control) and monitor the control process through the set program, so as to realize the operator to control the production line and modify the control parameters, and monitor the equipment operation status, operation parameters and fault indication in real time. The length of the work piece can be adjusted.
The baffler forming machine for fire damper machine adopts PLC control, LCD touch screen, human-computer interface. Realize the interaction between human and Panasonic PLC. The operator can automatically run (programmable control) and monitor the control process through the set program, so as to realize the operator to control the production line and modify the control parameters, and monitor the equipment operation status, operation parameters and fault indication in real time. The length of the work piece can be adjusted.
Fire damper riveting platform consist of frame riveting(four rivets),TDF corner riveter(four rivets),supporting bar riveting(two rivets) and baffler rivets(single rivet).
The bending pipe welding machine is suitable for the welding application of the inner and outer arc of the stamping attachment of the land circular air pipe. The welding control unit and other aspects of the man-machine interface of the equipment are independently developed and designed, including the important welding elements such as welding current and speed,and the digital display of the man-machine interface is fully realized.And for the welding characteristics of galvanized sheet steel, in the welding control of the design of a unique welding curve, so that it can be more reliable to complete the professional needs of galvanized sheet welding.
Electric Shearing Machine features impact and reasonable structure, high rigidity, convenient operation, low noise, low distortion and is widely applied for the thick plate shearing for various kinds of industries.
Angle iron flange punching and cutting including total 5 parts: Feeding device, major part, cutting device, hydraulic and electric system. PLC control system can improve accuracy , more effective and lower cost.
According to technical requirements from customers, we could specially make the following mechanical equipments; beading, circle rolling and anging machine for blower crust. It can complete processing once time automatically and accurately. Blower Crust Flanging Machine video：
The uncoiling and leveling production line is used for various roll bending processes. After uncoiling, leveling, and cutting, flat sheets of the required width and length can be obtained. The production line consists of a feeding rack, uncoiler, leveler, conveyor, guide device, length fixing device, plastic cover plate device, shearer, and conveyor table.
