|QC12YSeries Hydraulic Pendulum Shearing Machine
Hydraulic shearer Hydraulic shearer

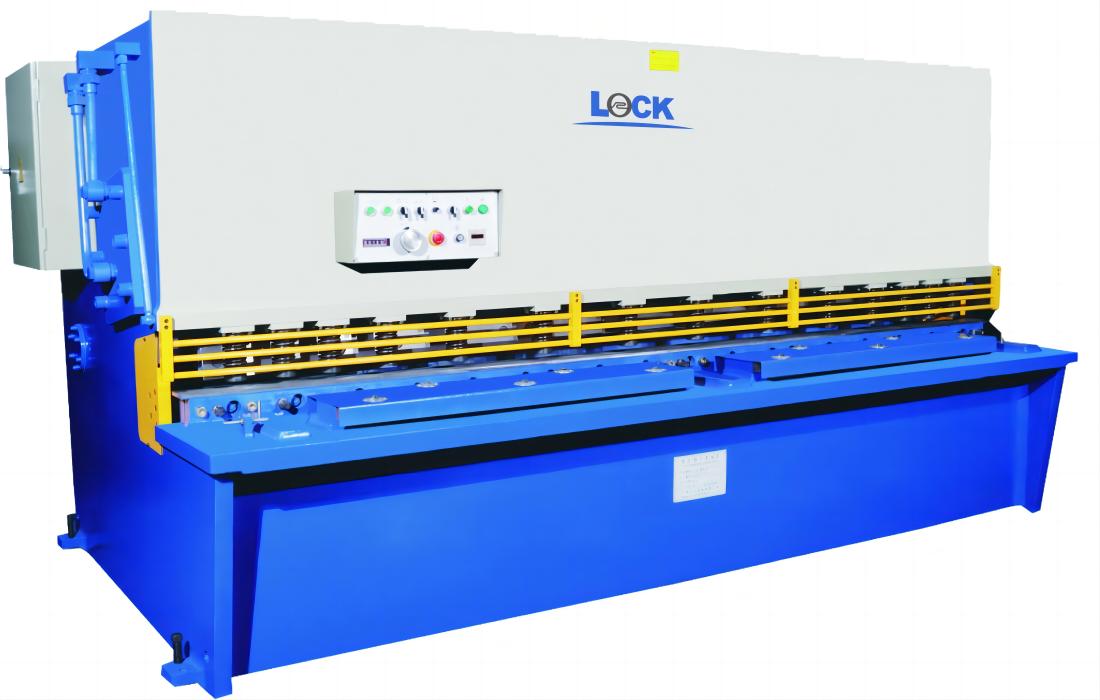

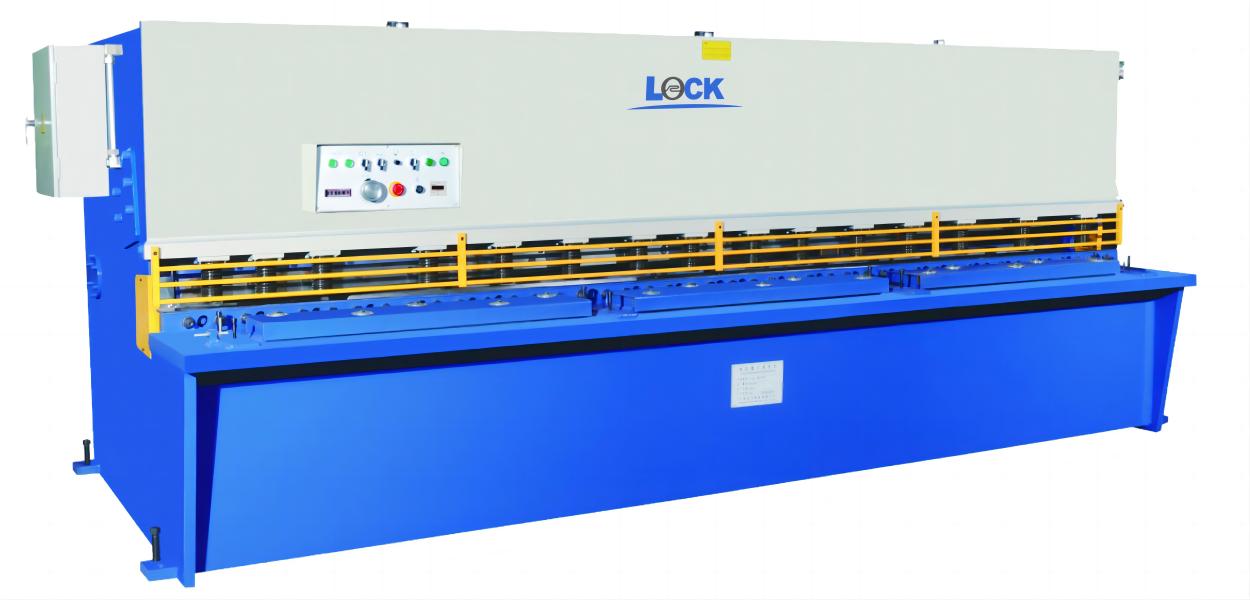

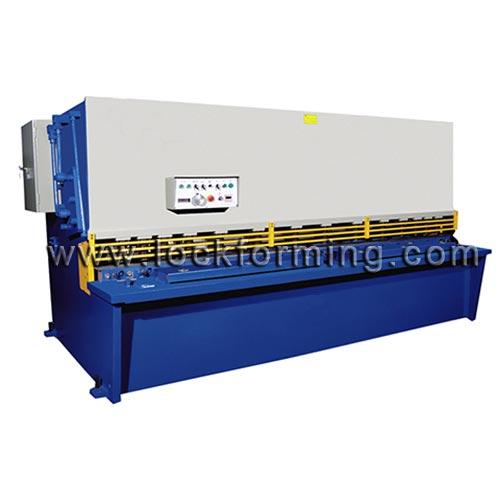

QC12YSeries Hydraulic Pendulum Shearing Machine

Hydraulic shearer is of high strength cast iron body, fixed table structure, increased stability. It adopts a through shaft structure and a cast steel clutch. The shaft is a new type of wear-resistant shaft sleeve. Large machine tools are all made of cast steel gears. Greatly extend the service life. The electric appliance adopts domestic and foreign famous brand products, equipped with two hand starting device, centralized lubrication of oil pump, optional photoelectric protection and automatic centralized oil supply, and can be used in combination with a variety of CNC feeding systems.


Product Categories

Hot products

  • Product Details


  All steel plate welding frame,strong strength and rigidity; Hydraulic pressure device,and reliable safety
barrier cutting edge clearance,rapid adjustment of honey tool holder stroke adjustable when cutting narrow
material can improve production efficiency; The distance of rear stopper is adjusted by electric adjustment and

manual fine adjustment. Shear counting device, light line device, easy to cut line.


1.The whole steel welded frame with full strength and rigidity
2.Hvdraulic press device with reliabl safety railings.
3.Adopting quick adjustment of cuting stroke and adjustable cutting
frame to improve production efficiency when cutting shor sheet.

4.Back-gauge station adopts motor-drive measure with fine manual aAiuslment.

5.Cutting counting
6.Light line device,easy to draw line for cutting.

技术规格
Model 		最大可剪板厚
Maximum shear
thickness (mm) 		最大可剪板宽
Maximum shear
width(mm) 		剪切角
shear angle
(mm) 		剪切板料强度
Plate strength
(n/mm²) 		后挡料距离
Back-gauge
station(mm) 		主电机功率
Main motor
(kw) 		外形尺寸（长×宽×高）
Dimension
(L×W×H)(mm) 		机床重量
Weight
(kg)
QC12Y-4×2500 4 2500 1°30′ 450 600 4 3100×1430×1500 3800
QC12Y-4×3200 4 3200 1°30′ 450 600 5.5 3800×1670×1620 5300
QC12Y-4×4000 4 4000 1°30′ 450 600 5.5 4600×1860×1850 6800
QC12Y-6×2500 6 2500 1°30′ 450 600 7.5 3100×1540×1550 5000
QC12Y-6×3200 6 3200 1°30′ 450 600 7.5 3800×1670×1620 6500
QC12Y-6×4000 6 4000 1°30′ 450 600 7.5 4600×1860×1850 8500
QC12Y-6×6000 6 6000 1°30′ 450 600 7.5 6650×2500×1980 17800
QC12Y-8×2500 8 2500 1°30′ 450 600 11 3140×1600×1570 5900
QC12Y-8×3200 8 3200 1°30′ 450 600 11 3800×1720×1700 7500
QC12Y-8×4000 8 4000 1°30′ 450 600 11 4600×1930×1780 9400
QC12Y-8×6000 8 6000 1°30′ 450 600 11 6680×2550×1990 20000
QC12Y-12×2500 12 2500 1°30′ 450 800 18.5 3150×2000×1850 9400
QC12Y-12×3200 12 3200 1°40′ 450 800 18.5 3850×2060×1900 11800
QC12Y-12×4000 12 4000 1°40′ 450 800 18.5 4650×2350×1980 14300
QC12Y-12×6000 12 6000 1°40′ 450 800 18.5 6680×2470×2850 27000
QC12Y-16×2500 16 2500 1°40′ 450 800 18.5 3180×2150×1880 10000
QC12Y-16×3200 16 3200 2°20′ 450 800 18.5 3880×2450×2030 13000
QC12Y-16×4000 16 4000 2°30′ 450 800 18.5 4680×2650×2100 17000
QC12Y-20×2500 20 2500 2°30′ 450 1000 30 3180×2420×2020 14800
QC12Y-20×3200 20 3200 2°30′ 450 1000 30 3880×2650×2150 18500
QC12Y-20×4000 20 4000 2°30′ 450 1000 30 4680×3100×2250 24000
QC12Y-20×6000 20 6000 2°30′ 450 1000 30 6750×2350×3600 53000
QC12Y-25×2500 25 2500 3° 450 1000 30 3280×2650×2300 19000
QC12Y-32×2500 32 2500 3°30′ 450 1000 37 3300×2850×2450 25000


Hot Tags: Hydraulic swing beam shearer Hydraulic shearer Hydraulic guillotine CNC swing beam shear Shearing machine
Get A Free Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Subject : QC12YSeries Hydraulic Pendulum Shearing Machine
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Related Products
Guillotine

QC11YSeries-Hydraulic Brake Plate Shearing Machine

Hydraulic guillotine shearer is of high strength cast iron body, fixed table structure, increased stability. It adopts a through shaft structure and a cast steel clutch. The shaft is a new type of wear-resistant shaft sleeve. Large machine tools are all made of cast steel gears. Greatly extend the service life. The electric appliance adopts domestic and foreign famous brand products, equipped with two hand starting device, centralized lubrication of oil pump, optional photoelectric protection and automatic centralized oil supply, and can be used in combination with a variety of CNC feeding systems.

Fire damper blade rolling forming machine

Damper Blade Roll Forming Machine

The blade forming machine for fire damper machine adopts PLC control, LCD touch screen, human-computer interface. Realize the interaction between human and Panasonic PLC. The operator can automatically run (programmable control) and monitor the control process through the set program, so as to realize the operator to control the production line and modify the control parameters, and monitor the equipment operation status, operation parameters and fault indication in real time. The length of the work piece can be adjusted.

welding machine

Punching bending welding machine(inner&outer)

  The bending pipe welding machine is suitable for the welding application of the inner and outer arc of the stamping attachment of the land circular air pipe. The welding control unit and other aspects of the man-machine interface of the equipment are independently developed and designed, including the important welding elements such as welding current and speed, and the digital display of the man-machine interface is fully realized.And for the welding characteristics of galvanized sheet steel, in the welding control of the design of a unique welding curve, so that it can be more reliable to complete the professional needs of galvanized sheet welding.

Guillotine

QC11YSeries-Hydraulic Brake Plate Shearing Machine

Hydraulic guillotine shearer is of high strength cast iron body, fixed table structure, increased stability. It adopts a through shaft structure and a cast steel clutch. The shaft is a new type of wear-resistant shaft sleeve. Large machine tools are all made of cast steel gears. Greatly extend the service life. The electric appliance adopts domestic and foreign famous brand products, equipped with two hand starting device, centralized lubrication of oil pump, optional photoelectric protection and automatic centralized oil supply, and can be used in combination with a variety of CNC feeding systems.

HVAC folding machine

TDF Flange Folding Machine

HVAC square metal folding machine comes into being serialization,including hydraulic,pneumatic,manual，which offers customers many choices.

Duct fabrication machinery

Duct Manufacturing Duct Line V

Ventilation duct machine The air duct production line V is composed of feeding frame, leveling and beading, hydraulic punching point and square mouth, hydraulic shearer, movable pittsburgh forming machine,feeding platform, duplex flange machine, duplex angle iron flange machine (or double snap lock machine), servo feeding platform and TDF hydraulic folding. The computer control part adopts full computer control, bending with servo feeding, accurate positioning, especially when processing the bigger air duct, to ensure the bending accuracy.

Angle steel forming machine

Hydraulic Angle Steel Rolling Machine

With vertical structure, angle iron bender can bend various inner and outer angle iron. It also can roll round steel, round pipe,square pipe, U steel by changing rolling wheels. It is an ideal equipment for bending angle iron flange and section bars and widely used in construction, decoration, hardware, light industry, and chemical industries, etc.

Laser Cutting Machine

Laser Cutting Machine

Over the years,we have been committed to providing excellent sheet cutting solutions for customers in the air duct industry,aiming to help them achieve production efficiency and productquality improvement.

Angle cutting machine

Angle Notching Machine

Angle notching machine is used for notching in making square metal boxes. It is convenient,accurate and with high efficiency. The machine covers hand-operated, pedal and hydraulic types. It is applicable in such industries as medical industry.

HVAC machinery

Duct Manufacturing Auto Line VII

HVAC duct line  Ⅶ ,with U-shaped structure not only saves the production site, but also reduces the delivery time of raw materials. The production efficiency is high (about 20-23 seconds per piece). The department fully automatically realizes the fixed size cutting, beading, automatic cutting ,the notching, single hem folding, pittsburgh forming, TDF flange and the angle iron flange ,automatically forming and bent into ”L“, ”U“, ”口“ shaped duct. Equipped with punching support air, TDF flange hole is optional. Pittsburgh is formed before bending the short side of the large size duct.C+S flange is optional.It has the advantages of high automation, high efficiency, labor saving and material saving.

Positive Pressure Air Supply outlet Production Line

Fire Damper Forming Machine

Positive pressure air supply molding machine is composed of uncoiler, cold rolling molding machine, straightening, shaping, cutting with fixed length, punching and manual discharging.

Punching Machine

Je23 Series Punching Machine

  Product features: copper crankshaft structure, rigid key clutch,two hands protection starting device, automatic oiler, automatic cylindercontrol switch.Different molds choose diferent punch presses,semi-automatic molds. full automaticmolds (including feeding rack, leveling machine, servo feeding) 40 Ton TDF automatic corner punching machine video： 63 TON TDC automatic corner punching machine video： 名称 Description 技术参数 Specification 型号 Type JG23-40D JC23-63D J23-80D 公称力 Nominal force kN 400 630 800 滑块行程 Slide stroke mm 20-120 20-120 10-130 行程次数 SPM min⁻¹ 55 55 50 最大装模高度 Max die height mm 210 220 270 装模高度调节量 Die height adjustment mm 70 80 80 工作台板尺寸（前后×左右） Bolster(F·B×L·R) mm 400×660 450×700 480×780 工作台板落料孔尺寸（上孔直径×深度×下孔直径） Bolster opening(up dia × depth × low dia) mm Φ220×25×Φ180 Φ200×45×Φ180 Φ200×45×Φ180 工作台板厚度 Bolster thickness mm 80 90 100 机身工作台孔尺寸（直径×前后×左右） Bed opening(Dia×F·B×L·R) mm Φ200×150×300 Φ250×200×340 Φ250×200×340 模柄孔尺寸（直径×深度） Shank hole (Dia×Depth) mm Φ50×70 Φ50×80 Φ60×75 立柱间的距离 Bettween columns mm 250 280 320 主电机功率 Main motor power kW 3 4 5.5 外形尺寸（前后×左右×高） Outline dimension(F·B×L·R×H) mm 1200×1100×2300 1500×1300×2500 1800×1600×2650 重量 Weight(KG) 2500 3200 4200
