HVAC machinery line Ⅶ

HVAC duct line  Ⅶ ,with U-shaped structure not only saves the production site, but also reduces the delivery time of raw materials. The production efficiency is high (about 20-23 seconds per piece). The department fully automatically realizes the fixed size cutting, beading, automatic cutting ,the notching, single hem folding, pittsburgh forming, TDF flange and the angle iron flange ,automatically forming and bent into ”L“, ”U“, ”口“ shaped duct. Equipped with punching support air, TDF flange hole is optional. Pittsburgh is formed before bending the short side of the large size duct.C+S flange is optional.It has the advantages of high automation, high efficiency, labor saving and material saving.

Product Categories

Hot products

  • Product Details

Characters of HVAC duct machine line:

HVAC product machine line is u-shaped distribution, small area, convenient installation, suitable for limited site manufacturers to use, fast, high efficiency.Average daily production duct is more than 2000 square meters. The production line has the automatic material-saving pattern, the processing plate has no scrap.

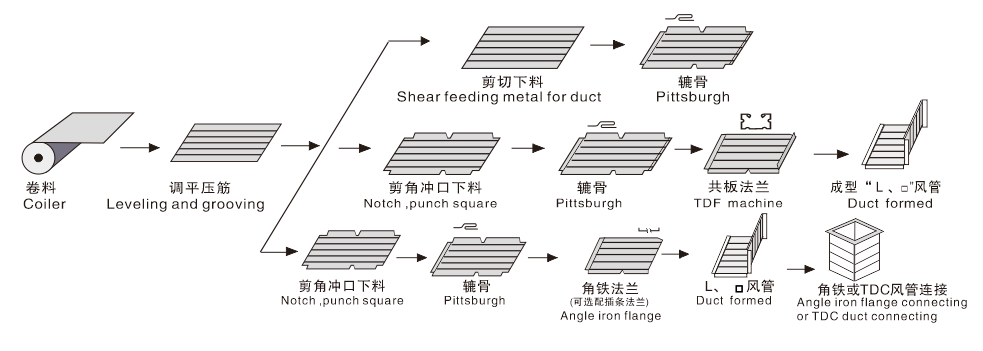

Working Schematic Diagram for HVAC machine line:



Main Components:

Servo motor:Yasukawa

PLC:Panasonic

Electrical components: Schneider

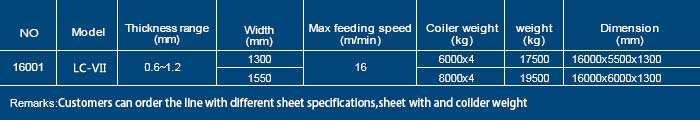

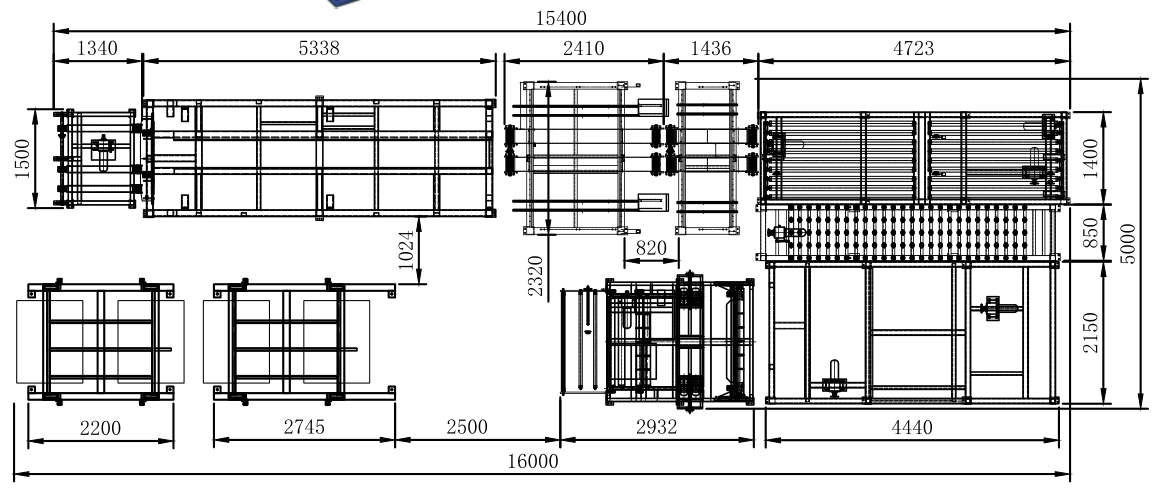

Duct Line Size Showing:

Basic Equipment:

Two sets of electrical decoiler

One set of leveling and grooving,shearing,folding device

Punching moulds

Punching hole on TDF flange(optional configuration)

Punching bracing hold for duct(optional configuration)

No.1 electrical feeding-platform

Pittsburgh lock former

No.2 electrical feeding-platform

Duplex angle-iron or standing seam flange former

Duplex TDF flange former

TDF hydraulic folder

Duct transmission rack

CNC control system and hydraulic system
