HVAC Damper Supporting Bar Roll Forming Machine

The supporting bar machine for fire damper machine adopts PLC control, LCD touch screen, human-computer interface. Realize the interaction between human and Panasonic PLC. The operator can automatically run (programmable control) and monitor the control process through the set program, so as to realize the operator to control the production line and modify the control parameters, and monitor the equipment operation status, operation parameters and fault indication in real time. The length of the work piece can be adjusted.
  • Product Details

Electrical control system of supporting forming machine:
PLC: Panasonic of fpx-c30t
True color touch screen: Taiwan Winon
Detection encoder: Japan internal secret control encoder
Servo drive system: Viktor (or invetion) servo drive system
Low voltage electrical appliances: circuit breakers and contactors are domestic famous brand "Chint" electrical appliances, and relays are "Omron" or "Schneider".

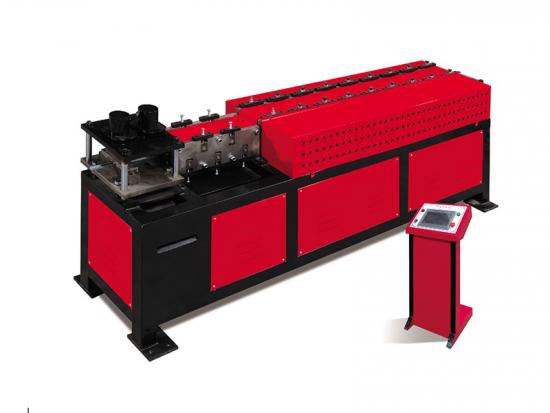

Bar Forming Machine Video:

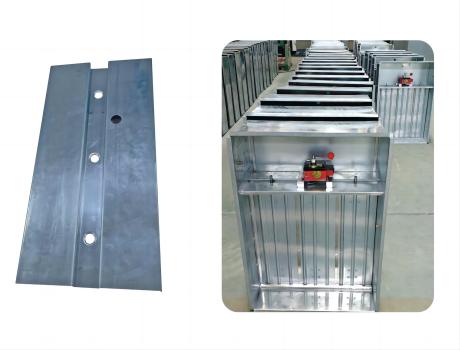

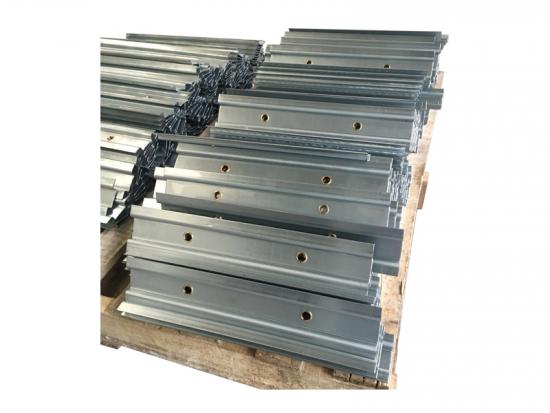

Finished Products:

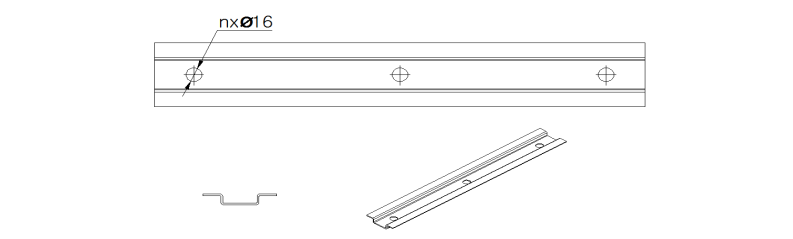

Product drawing:

Description of function:

Servo motor, full automatic operation;
Automatic punching hole,fixed length cutting;
Freely setting punching hole quantity and punching
hole distance
Continuous order mode
It can be shared with the septum forming machine



Model
Thickness range(mm)
Width(mm)
Max-working speed(m/min)
Coiler weight(kg)
Weight(kg)
Motor(kw)
Dimension(mm)
LC-ZG 1.5-2 120/210 10 2000 5000 12 5000x800x1300
