Baffler forming machine for fire damper machine

The baffler forming machine for fire damper machine adopts PLC control, LCD touch screen, human-computer interface. Realize the interaction between human and Panasonic PLC. The operator can automatically run (programmable control) and monitor the control process through the set program, so as to realize the operator to control the production line and modify the control parameters, and monitor the equipment operation status, operation parameters and fault indication in real time. The length of the work piece can be adjusted.
Product Details

Electrical control system of baffler forming machine:
PLC: Panasonic of fpx-c30t
True color touch screen: Taiwan Winon
Detection encoder: Japan internal secret control encoder
Servo drive system: Viktor (or invetion) servo drive system
Low voltage electrical appliances: circuit breakers and contactors are domestic famous brand "Chint" electrical appliances, and relays are "Omron" or "Schneider".

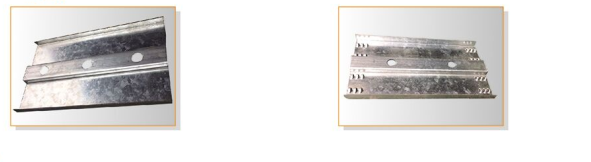

Finished Products:

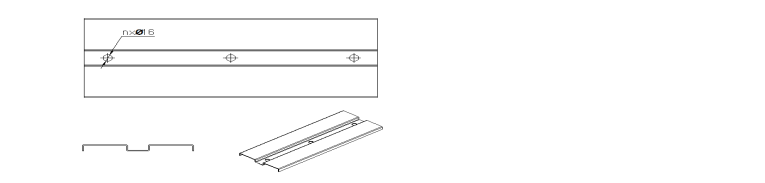

Product drawing:


Description of function:

●Servo driving,full automation operation

●Automatic punching,fixed length cutting

●Free setting punching number and punching space

●Hydraulic shearer

●Order mode

Basic Configuration:

1.One decoiler

2.One set of baffler forming machine

3.One suit of hydraulic cutting

4 One suit of automatic punching device

5.One set of collecting platform

6.One suit of digital controlling system

7.One suit of hydraulic system
