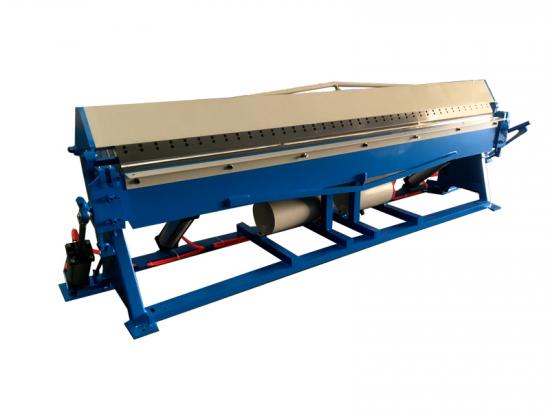

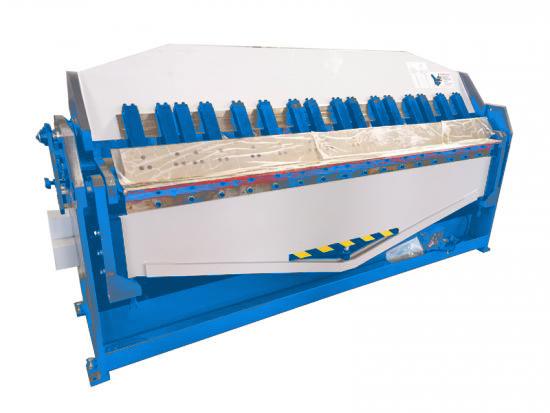

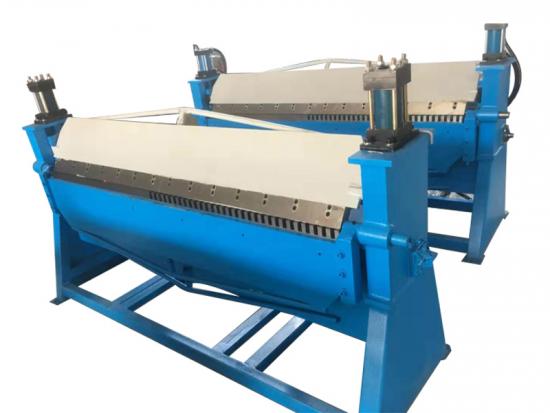

TDF Flange Folding Machine

HVAC square metal folding machine comes into being serialization,including hydraulic,pneumatic,manual,which offers customers many choices.
  • Product Details

Characters:

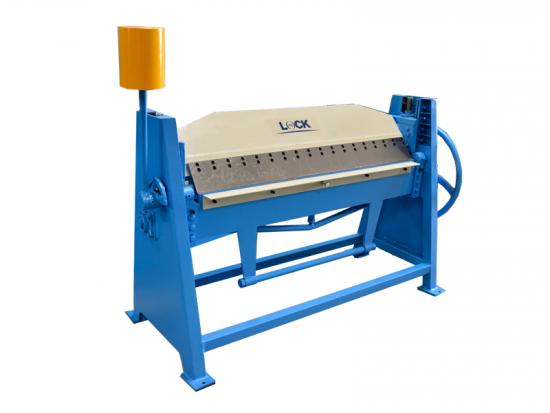

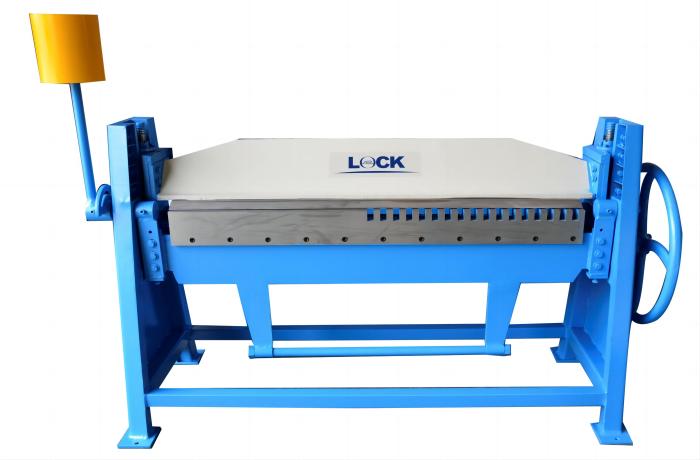

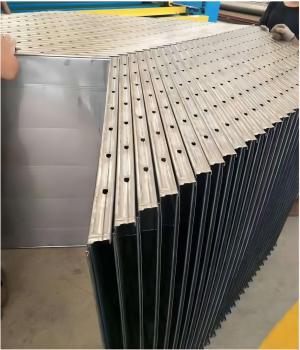

TDF manual folding machine is suitable for air duct manufacturing. It can make any size of TDF folding.

Metal folding machine video:


Model Folding Capacity(mm) Motor(kw) Weight(kg) Size(L.W.H)
LC-1300TDF 1.5x1300      310 1990x710x1420
LC-2020TDF 1.5x2020      520 2630x680x1530
LC-2500TDF 1.5x2500      1000 3100x910x1700
LCQ-1300TDF 1.5x1300      350 2000x850x1450
LCQ-2020TDF 1.5x2020      560 2700x840x1550
LZ-1300TDF 1.5x1300 30 900 1900x700x1200

Get A Free Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
