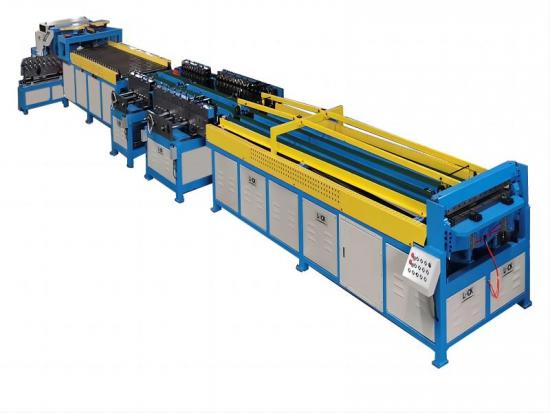

Air duct production line  Ⅷ is a new type of air duct automatic production line of our company. The U-shaped structure not only saves the production site, but also reduces the delivery time of raw materials. The production efficiency is high (about 20-23 seconds per piece). The department fully automatically realizes the fixed size cutting, beading, automatic cutting ,the notching, single hem forming, pittsburgh forming, TDF flange and the angle iron flange ,automatically forming and bent into ”L“, ”U“, ”口“ shaped duct. Equipped with punching support air, TDF flange hole is optional. Pittsburgh is formed before bending the short side of the large size duct. It has the advantages of high automation, high efficiency, labor saving and material saving.

HVAC duct line  Ⅶ ,with U-shaped structure not only saves the production site, but also reduces the delivery time of raw materials. The production efficiency is high (about 20-23 seconds per piece). The department fully automatically realizes the fixed size cutting, beading, automatic cutting ,the notching, single hem folding, pittsburgh forming, TDF flange and the angle iron flange ,automatically forming and bent into ”L“, ”U“, ”口“ shaped duct. Equipped with punching support air, TDF flange hole is optional. Pittsburgh is formed before bending the short side of the large size duct.C+S flange is optional.It has the advantages of high automation, high efficiency, labor saving and material saving.

HVAC duct line VI,the U-shaped structure not only saves the production site, but also reduces the delivery time of raw materials. The production efficiency is high (about 20-23 seconds per piece). The department fully automatically realizes the fixed size cutting, beading, automatic cutting ,the notching,pittsburgh forming, TDF flange and the angle iron flange ,automatically forming and bent into ”L“, ”U“, ”口“ shaped duct. Equipped with punching support air, common plate flange hole is optional.It has the advantages of high automation, high efficiency, labor saving and material saving.

Ventilation duct machine The air duct production line V is composed of feeding frame, leveling and beading, hydraulic punching point and square mouth, hydraulic shearer, movable pittsburgh forming machine,feeding platform, duplex flange machine, duplex angle iron flange machine (or double snap lock machine), servo feeding platform and TDF hydraulic folding. The computer control part adopts full computer control, bending with servo feeding, accurate positioning, especially when processing the bigger air duct, to ensure the bending accuracy.

HVAC duct fabrication machine Ⅲ features in high auomation,high efficiency and saving materials,which is very suitable for mass production of square ducts. Autoline - III consists of a metal feeding frame, leveling and grooving equipment, hydraulic punching square notch equipment, hydraulic cutter and folder. The electrical control system uses a computer with a closed-loop and servo-system to increase the precision and reliability of the manufacture line. The maximum working speed is 16m/min.The length tolerance is±0.3mm. The diagonal line tolerance is ±0.5mm.   One team will produce 1000㎡of square duct by using this system.

Air Duct Machine Line Ⅱ is mainly for TDF flange blanking,meanwhile,it can be used for normal sheet blanking.Matched with TDF forming machine,pittsburgh lock former,folder and angle joint joint,the line can produce nice TDF ducts.

Dcoiler and leveler line is used for different roll bending.It gets a flat plate of requirement width and length after decoil,leveler and cutting.It is combined with feeding shelf,decoiller,leveling,transporter,guiding device set-to- length device,plastic-cover device,shearing machine,transporting table.

HVAC plasma cutting machine is  mainly consists of the host system and its associate software system. The electrical control system is mastered by computer and equipped with excellent cutting software which is often used for different kinds of duct blanking.

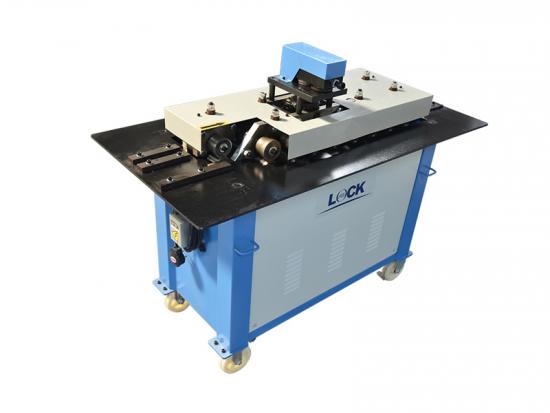

Lock formiing machines,as one of our flagship products,including representative LC-10,LC-12 and LC-15 series,can process galvanized sheet with different thickness intovarious shapes.Normal lock formers can process galvanized sheet with thickness in the range of 0.5-1.5mm,at most 2.0mm.LC-12DR and LC-15DR can process 6 kinds of profiles. If customers need, we can design special machines to make special profiles.The machine features in light weight,so it is easy to move and suitable to be used at sites.

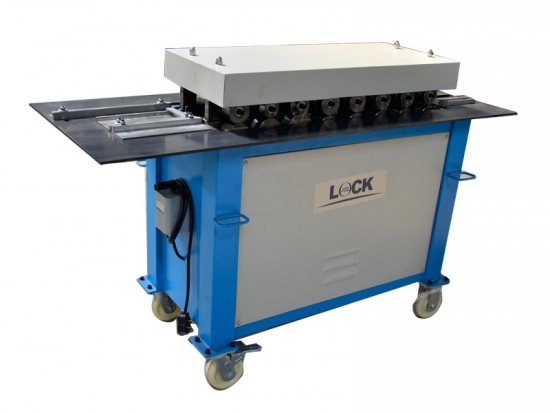

Duct lock forming machines can process galvanized sheet with different thickness into various shapes,such as profile pittsburgh,single hem,double hem,snap hem,elbow,S shape and so on.

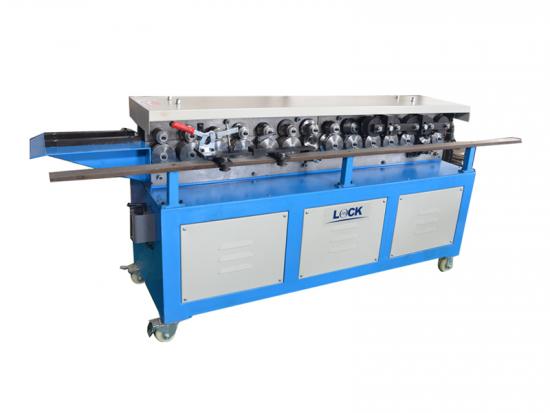

TDF flange forming machine applies both sides feeding and simultaneously shaping work mode, one side forming and one side forming is for installing hooks. TDF folder is with hydraulic,pneumatic,manual type.

TDC Flange Forming machine is the advanced technique in the world to manufacture square duct.It realizes standard,automation and mass production during producing rectangle flanges.
