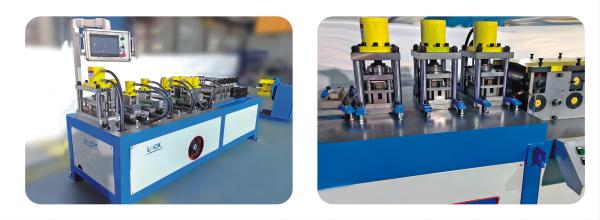

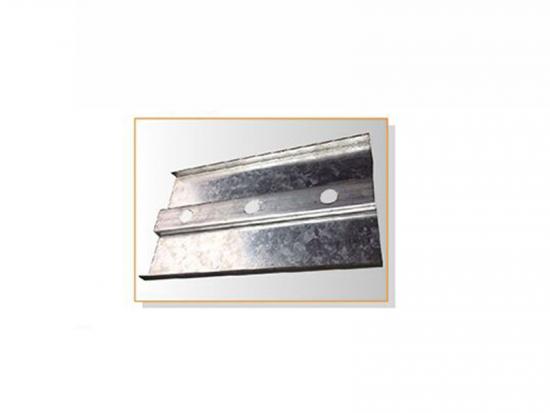

VCD production line has the unctions of punching,forming and bending, replacing the traditional production process with shearing machine and bending equipment. The main parts of the whole line are decoiler, punching,forming part and automatic olding. The products produced by the machine do not need anti-rust treatment, which ensures that the galvanized layer ofthe zinc plate does not have any damage.It can be customized according to customer needs.
Fire Damper Frame Production Line：
VCD Production Line：
Description of function:
Basic Part:
Get A Free Quote

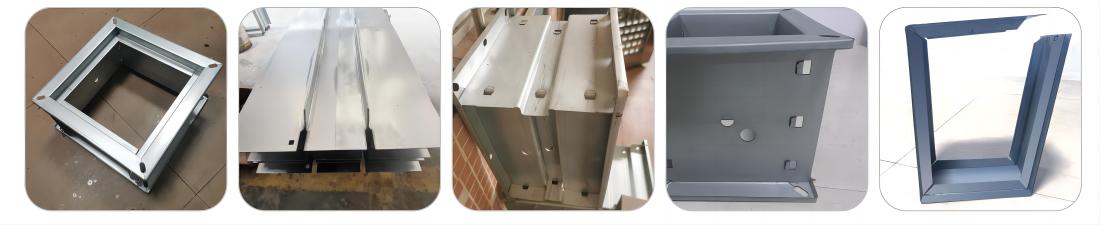

Fire damper machine consists of frame production line,positive pressure air supply outlet production line,blades forming machine,supporting bar forming machine,spring forming machine,riveting platform and so on.
Positive pressure air supply molding machine is composed of uncoiler, cold rolling molding machine, straightening, shaping, cutting with fixed length, punching and manual discharging.
The blade forming machine for fire damper machine adopts PLC control, LCD touch screen, human-computer interface. Realize the interaction between human and Panasonic PLC. The operator can automatically run (programmable control) and monitor the control process through the set program, so as to realize the operator to control the production line and modify the control parameters, and monitor the equipment operation status, operation parameters and fault indication in real time. The length of the work piece can be adjusted.
The supporting bar machine for fire damper machine adopts PLC control, LCD touch screen, human-computer interface. Realize the interaction between human and Panasonic PLC. The operator can automatically run (programmable control) and monitor the control process through the set program, so as to realize the operator to control the production line and modify the control parameters, and monitor the equipment operation status, operation parameters and fault indication in real time. The length of the work piece can be adjusted.
The baffler forming machine for fire damper machine adopts PLC control, LCD touch screen, human-computer interface. Realize the interaction between human and Panasonic PLC. The operator can automatically run (programmable control) and monitor the control process through the set program, so as to realize the operator to control the production line and modify the control parameters, and monitor the equipment operation status, operation parameters and fault indication in real time. The length of the work piece can be adjusted.
The spring forming machine for fire damper machine adopts PLC control, LCD touch screen, human-computer interface. Realize the interaction between human and Panasonic PLC. The operator can automatically run (programmable control) and monitor the control process through the set program, so as to realize the operator to control the production line and modify the control parameters, and monitor the equipment operation status, operation parameters and fault indication in real time. The length of the work piece can be adjusted.
Fire damper riveting platform consist of frame riveting(four rivets),TDF corner riveter(four rivets),supporting bar riveting(two rivets) and baffler rivets(single rivet).
The spiral air duct machine is divided into molding type of rolling cutting and steel strip of saw cutting. The molding of corresponding size must be used for each size of spiral air pipe. For the steel strip type,adopt different specifications and lengths of steel strip, can process the corresponding size of air duct.
HVAC duct fabrication machine Ⅲ features in high auomation,high efficiency and saving materials,which is very suitable for mass production of square ducts. Autoline - III consists of a metal feeding frame, leveling and grooving equipment, hydraulic punching square notch equipment, hydraulic cutter and folder. The electrical control system uses a computer with a closed-loop and servo-system to increase the precision and reliability of the manufacture line. The maximum working speed is 16m/min.The length tolerance is±0.3mm. The diagonal line tolerance is ±0.5mm. One team will produce 1000㎡of square duct by using this system.
Circle angle iron forming machine employs coil to form angle iron flange then cut off the processed work pieces with pleasant appearance and accurate dimensions. The equipment has advantage of compact structure and easy operation.Angle iron punching machine can be matched with the angle iron forming machine to produce perfect circle angle iron.
Theconducive electrode of the welding machine adopts South Korea's high conduetivitycopper eleclrode malerial, which makes the welding current uüilization ratio noreefficient. The important welding elements sucl as welding piessure realize the digialdisplay of man-machine interface, and acaiding to the welling characterisics of galvanizec sheet steel. a unique welding curve is designed in welding control so as to more reliably complete the professional needs of gelkanized shee welding.
HVAC duct line VI,the U-shaped structure not only saves the production site, but also reduces the delivery time of raw materials. The production efficiency is high (about 20-23 seconds per piece). The department fully automatically realizes the fixed size cutting, beading, automatic cutting ,the notching,pittsburgh forming, TDF flange and the angle iron flange ,automatically forming and bent into ”L“, ”U“, ”口“ shaped duct. Equipped with punching support air, common plate flange hole is optional.It has the advantages of high automation, high efficiency, labor saving and material saving.
