Fire Damper Manufacture Auto Line

|Damper Blade Roll Forming Machine

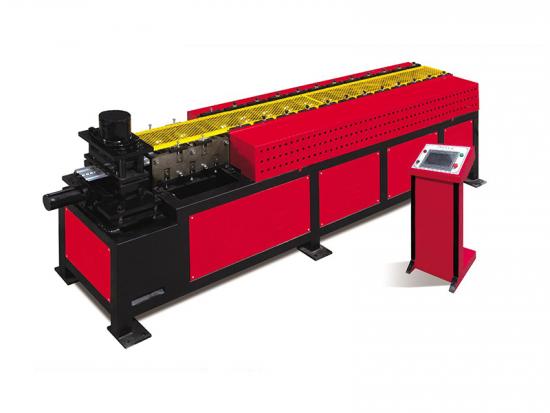

Damper Blade Roll Forming Machine

The blade forming machine for fire damper machine adopts PLC control, LCD touch screen, human-computer interface. Realize the interaction between human and Panasonic PLC. The operator can automatically run (programmable control) and monitor the control process through the set program, so as to realize the operator to control the production line and modify the control parameters, and monitor the equipment operation status, operation parameters and fault indication in real time. The length of the work piece can be adjusted.
  • Product Details

Electrical control system of blade forming machine:
PLC: Panasonic of fpx-c30t
True color touch screen: Taiwan Winon
Detection encoder: Japan internal secret control encoder
Servo drive system: Viktor (or invetion) servo drive system
Low voltage electrical appliances: circuit breakers and contactors are domestic famous brand "Chint" electrical appliances, and relays are "Omron" or "Schneider".

Fire Damper Blade Forming Machine Video:

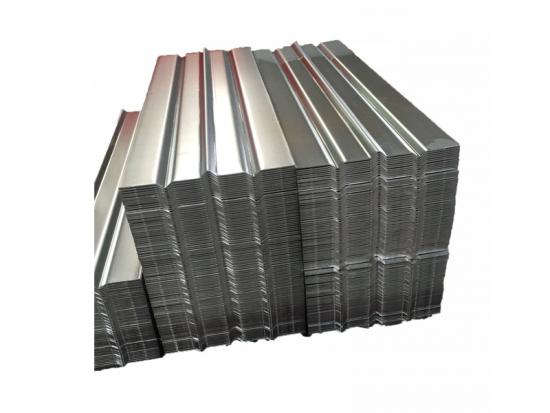

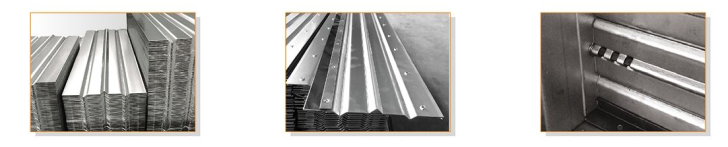

Finished Products:

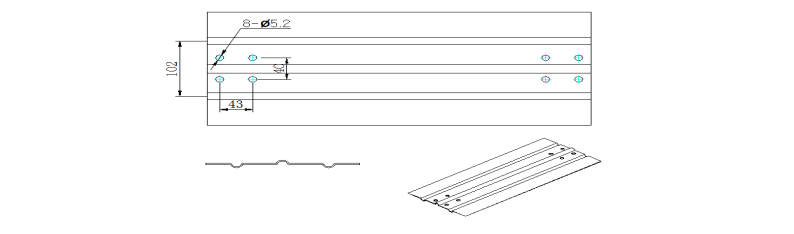

Product drawing:


Description of function:

Servo driving,full automatic operation

Automatic punching fixed length cutting

Free setting punching number and punching space

Continuous order production

Basic Configuration:

One powerless feeding support device
One set of baffler molding main machine
Oneset ofhydraulic cutting
One set of collecting platform
One suit of digital controlling system
One suit of hydraulic pressure system

Model
Thickness range(mm)
Width(mm)
Max-working speed(m/min)
Coiler weight(kg)
Weight(kg)
Motor(kw)
Dimension(mm)
LC-SK
1.5-2 163-203 10 2000 5000 12 7000x800x1300
