Rectangular Duct Forming Machine

|Duct Manufacturing Auto Line VIII

Duct Manufacturing Auto Line VIII

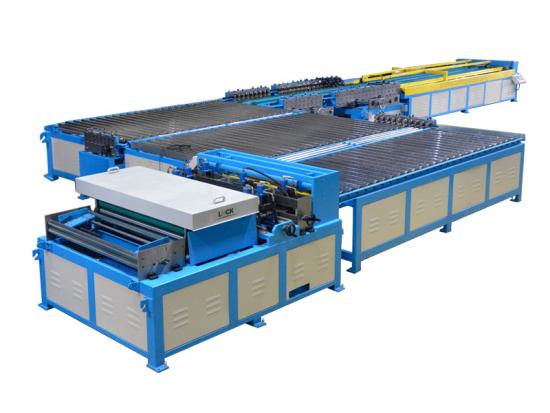

Air duct production line  Ⅷ is a new type of air duct automatic production line of our company. The U-shaped structure not only saves the production site, but also reduces the delivery time of raw materials. The production efficiency is high (about 20-23 seconds per piece). The department fully automatically realizes the fixed size cutting, beading, automatic cutting ,the notching, single hem forming, pittsburgh forming, TDF flange and the angle iron flange ,automatically forming and bent into ”L“, ”U“, ”口“ shaped duct. Equipped with punching support air, TDF flange hole is optional. Pittsburgh is formed before bending the short side of the large size duct. It has the advantages of high automation, high efficiency, labor saving and material saving.
  • Product Details

  Features:Automatic air duct production line VIIl is a new type of air duct automatic processing production line developed by our company.It adopts U-shaped structure,which not only saves the production site, but also reduces the sheet material transmission time,and has high production efficiency(about 20-23 seconds/piece). It can automatically cut the size of the air duct sheet material,compression bar,square&sharp notching,single hem&Pittsburgh molding,automatic forming ofTDF flange and Angle iron flange and automatic folding into "L""U""口"air duct.It can be equipped with punching support hole,TDF flange edge punching, film and other functions and very suitable for large duct bending.It has the advantages of high automation, high efficiency,saving labor and saving materials.

Duct line Ⅷ veido①:

Duct line Ⅷ veido②:

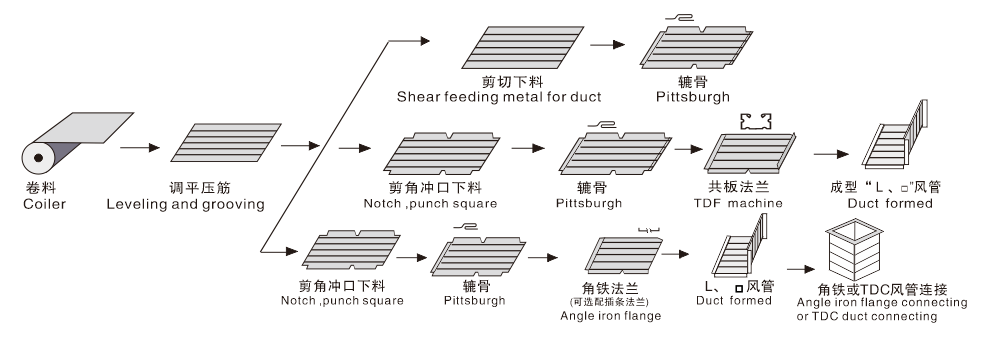

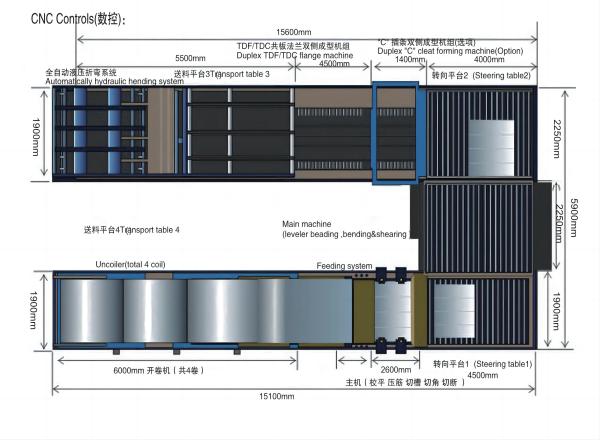

Working Schematic Diagram for HVAC machine line:

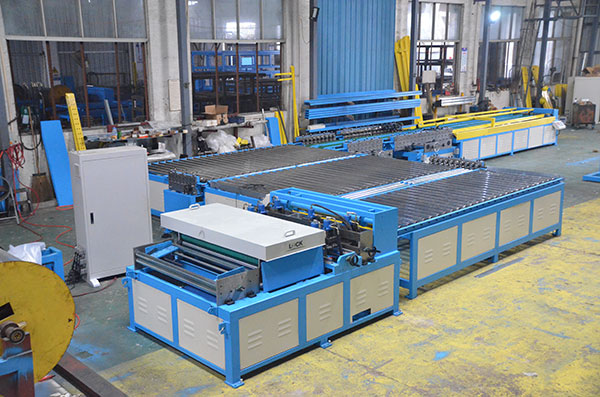

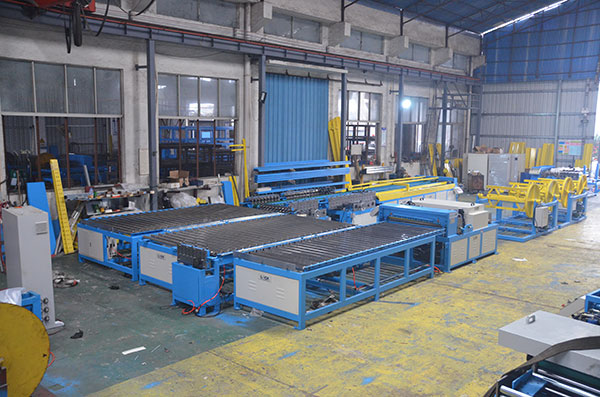

Duct line Ⅷ detail:

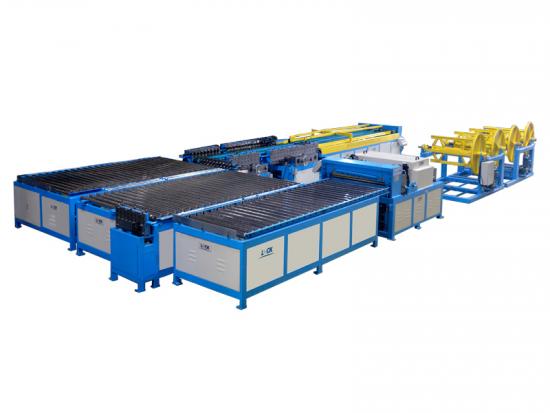

HVAC duct machine line

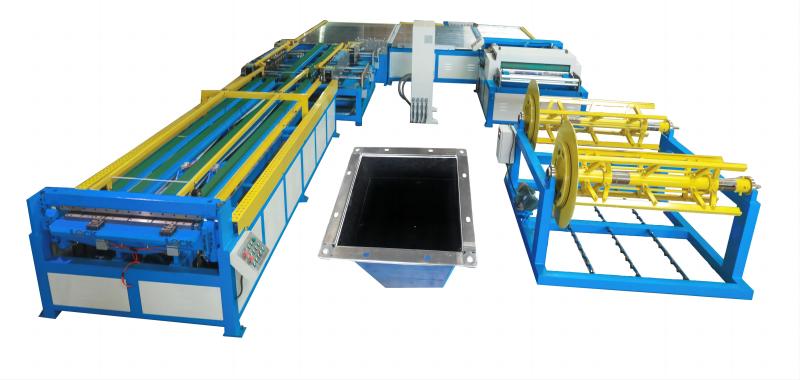

HVAC machine

Main Components:

Servo motor:Yasukawa

PLC:Panasonic

Electrical components: Schneider

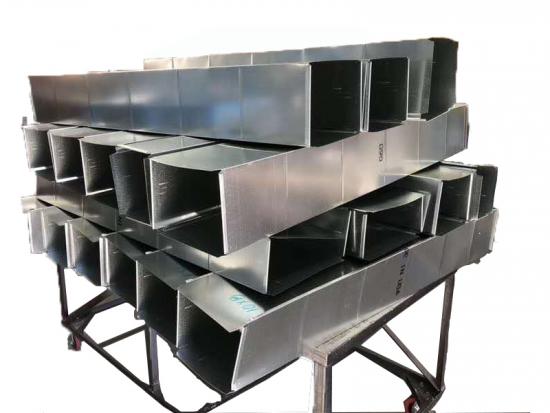

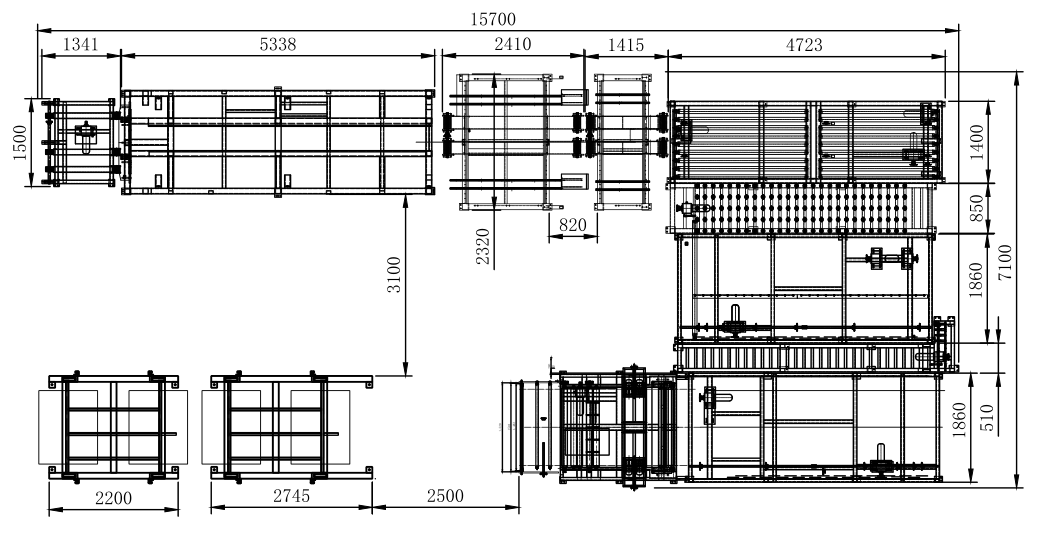

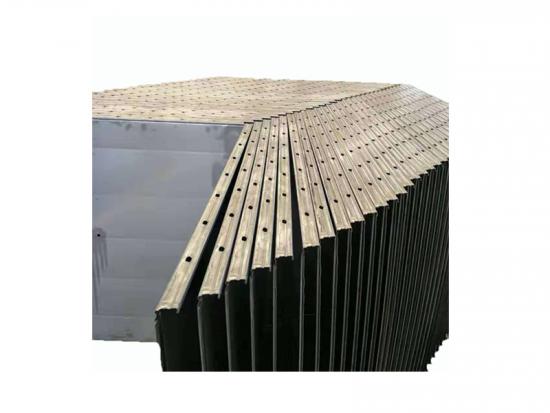

Duct Line Size Showing:

 Basic Equipment:

1.Two sets of eleclrc coiler frames
2.0ne sel of levelingand grooving,shearing device
3.4 sets of s(uare and sharp-crested nolching modes
4.Punchiigholes on TDF lange(optional configuration)
5.Punch tie rod hole for duclbracing(optional configuration)
6.Plate-lan ination device(optional conliguration)
7.Single hen forming machine
8.Oneelectric feeding lable(the frorl par)
9.Pitsburgh lock former
10.One eleclric feeding table( the latter prl)
11.Duplex angle-iron ol standing seam flange former
12.Duplex TDF lange former
13.TDF hydraulic folder
14.Incustrial computer and production soffware


Model  Thickness range(mm) Width(mm) Max-working speed(m/min) Coiler weight(kg)  Weight(kg) Dimension(mm)
LC-Ⅷ 05.-1.2 1300 15 8000x4 18500 16000x7000x1300
1500 8000x4 20500 16000x8000x1300
LC-Ⅷ 0.5-1.5 1300 15 8000x4 21500 16000x7000x1300
1500 8000x4 23500 16000x8000x1300
