strong and firm.

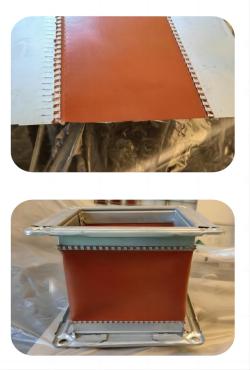

CNC soft joint production line video：
CNC soft joint production line video②：
Process：
Detailed configuration：
5.Hydraulic system
Get A Free Quote
With the advantages of reasonable design and structure, high precision and efficiency, flexible adjustment and convenience. Function: automatic detection coil parameters, decoiler and feeding with one key, automatic adjustment Automatic switching, automatic detection and calculation with safe and reliable
Dcoiler and leveler line is used for different roll bending.It gets a flat plate of requirement width and length after decoil,leveler and cutting.It is combined with feeding shelf,decoiller,leveling,transporter,guiding device set-to- length device,plastic-cover device,shearing machine,transporting table.
Circle angle iron forming machine employs coil to form angle iron flange then cut off the processed work pieces with pleasant appearance and accurate dimensions. The equipment has advantage of compact structure and easy operation.Angle iron punching machine can be matched with the angle iron forming machine to produce perfect circle angle iron.
Air Duct Machine Line Ⅱ is mainly for TDF flange blanking,meanwhile,it can be used for normal sheet blanking.Matched with TDF forming machine,pittsburgh lock former,folder and angle joint joint,the line can produce nice TDF ducts.
Hydraulic shearer is of high strength cast iron body, fixed table structure, increased stability. It adopts a through shaft structure and a cast steel clutch. The shaft is a new type of wear-resistant shaft sleeve. Large machine tools are all made of cast steel gears. Greatly extend the service life. The electric appliance adopts domestic and foreign famous brand products, equipped with two hand starting device, centralized lubrication of oil pump, optional photoelectric protection and automatic centralized oil supply, and can be used in combination with a variety of CNC feeding systems.
Hydraulic fastener replaces screws or rivets.It is especially used in HVAC engineering,which joins two or more metal sheets together through cold extrusion without rivets,which is widely used in the western countries.
HVAC duct line Ⅶ ,with U-shaped structure not only saves the production site, but also reduces the delivery time of raw materials. The production efficiency is high (about 20-23 seconds per piece). The department fully automatically realizes the fixed size cutting, beading, automatic cutting ,the notching, single hem folding, pittsburgh forming, TDF flange and the angle iron flange ,automatically forming and bent into ”L“, ”U“, ”口“ shaped duct. Equipped with punching support air, TDF flange hole is optional. Pittsburgh is formed before bending the short side of the large size duct.C+S flange is optional.It has the advantages of high automation, high efficiency, labor saving and material saving.
According to technical requirements from customers, we could specially make the following mechanical equipments; beading, circle rolling and anging machine for blower crust. It can complete processing once time automatically and accurately. Blower Crust Flanging Machine video：
Lock formiing machines,as one of our flagship products,including representative LC-10,LC-12 and LC-15 series,can process galvanized sheet with different thickness intovarious shapes.Normal lock formers can process galvanized sheet with thickness in the range of 0.5-1.5mm,at most 2.0mm.LC-12DR and LC-15DR can process 6 kinds of profiles. If customers need, we can design special machines to make special profiles.The machine features in light weight,so it is easy to move and suitable to be used at sites.
HVAC duct fabrication machine Ⅲ features in high auomation,high efficiency and saving materials,which is very suitable for mass production of square ducts. Autoline - III consists of a metal feeding frame, leveling and grooving equipment, hydraulic punching square notch equipment, hydraulic cutter and folder. The electrical control system uses a computer with a closed-loop and servo-system to increase the precision and reliability of the manufacture line. The maximum working speed is 16m/min.The length tolerance is±0.3mm. The diagonal line tolerance is ±0.5mm. One team will produce 1000㎡of square duct by using this system.
