First Product

|Air duct fabrication machine line V
Auto duct line Auto duct line Auto duct line Auto duct line

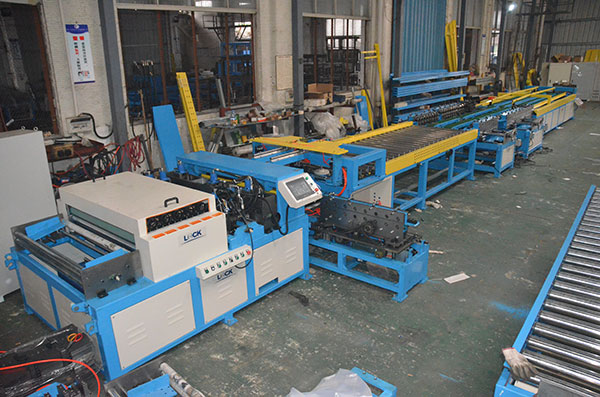

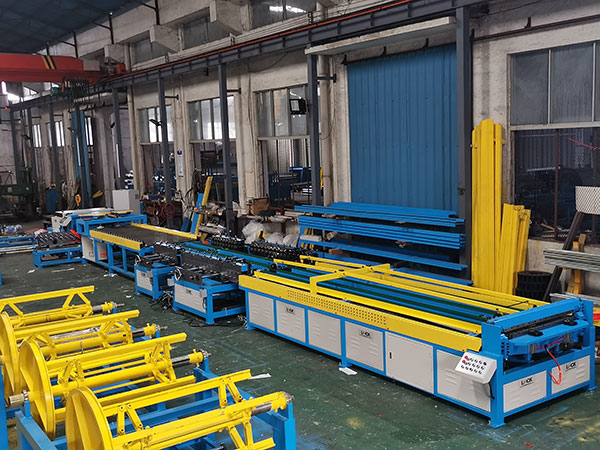

Air duct fabrication machine line V

Ventilation duct machine The air duct production line V is composed of feeding frame, leveling and beading, hydraulic punching point and square mouth, hydraulic shearer, movable pittsburgh forming machine,feeding platform, duplex flange machine, duplex angle iron flange machine (or double snap lock machine), servo feeding platform and TDF hydraulic folding. The computer control part adopts full computer control, bending with servo feeding, accurate positioning, especially when processing the bigger air duct, to ensure the bending accuracy.

Product Categories

Hot products

  • Product Details

Duct equipment Characters:

Air Duct Fabrication Machine Line V consists of coiler frames,leveling and grooving device,hydraulic nothching and punching device,hydraulic-shearing machine,displacement-type pittsburgh lock former,automatic feeding table,duplex TDF flange former and duplex single hem former or duplex standing hem flange former,servo feeding platform,hydraulic TDF folder and the electric cabinet.

Working Schematic DiagramBasic



Main Components:

Servo motor:Yasukawa

PLC:Panasonic

Electrical components: Schneider

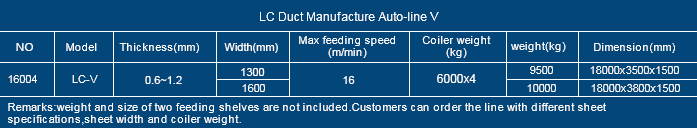

Duct line size showing:



Duct line Basic Equipment for Air Duct Fabrication Line:

2 sets of electrical coiler frames

Leveler,grooving roller,nothching and punching,shearer

Displacement-type pittsburgh lock forming machine

Electric feeding table

Duplex TDF flange former

Duplex single hem or standing hem flange forming machine

TDF hydraulic folder

Industrial computer and production software




Hot Tags: Duct equipment Duct fabrication machinery Air duct fabrication machine CNC duct fabrication machine line HVAC duct manufacturing machines line Ventilation duct machine
