TDF flange forming machine

TDF flange forming machine applies both sides feeding and simultaneously shaping work mode, one side forming and one side forming is for installing hooks. TDF folder is with hydraulic,pneumatic,manual type.
  • Product Details

TDF flange machine adopts heavy duty under pan, arc welding frame, high grade motor, high precision bearing, and thermal refined and grinned roll shafts. Its reliable transmission system is free of maintenance.

TDF duct machine Product Description:

1. TDF flanger

2. One side forms TDF Flange; the other side forms clip
3. 14 stations or 16 stations of roll forming

4.Duplex TDF forming machine is optional

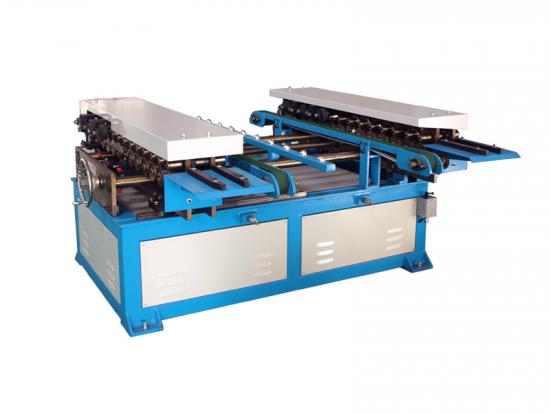

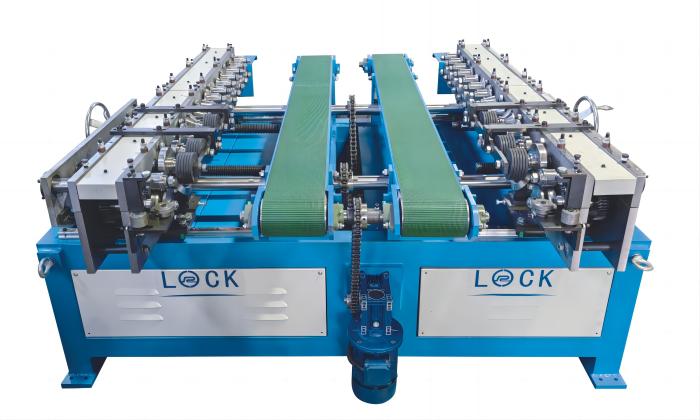

LOCK-Duplex TDF flange forming machine with 3 sides:


LOCK-TDF Flange Forming Machine with clip cutting video:


TDF FLANGE FORMING MACHINE Video:

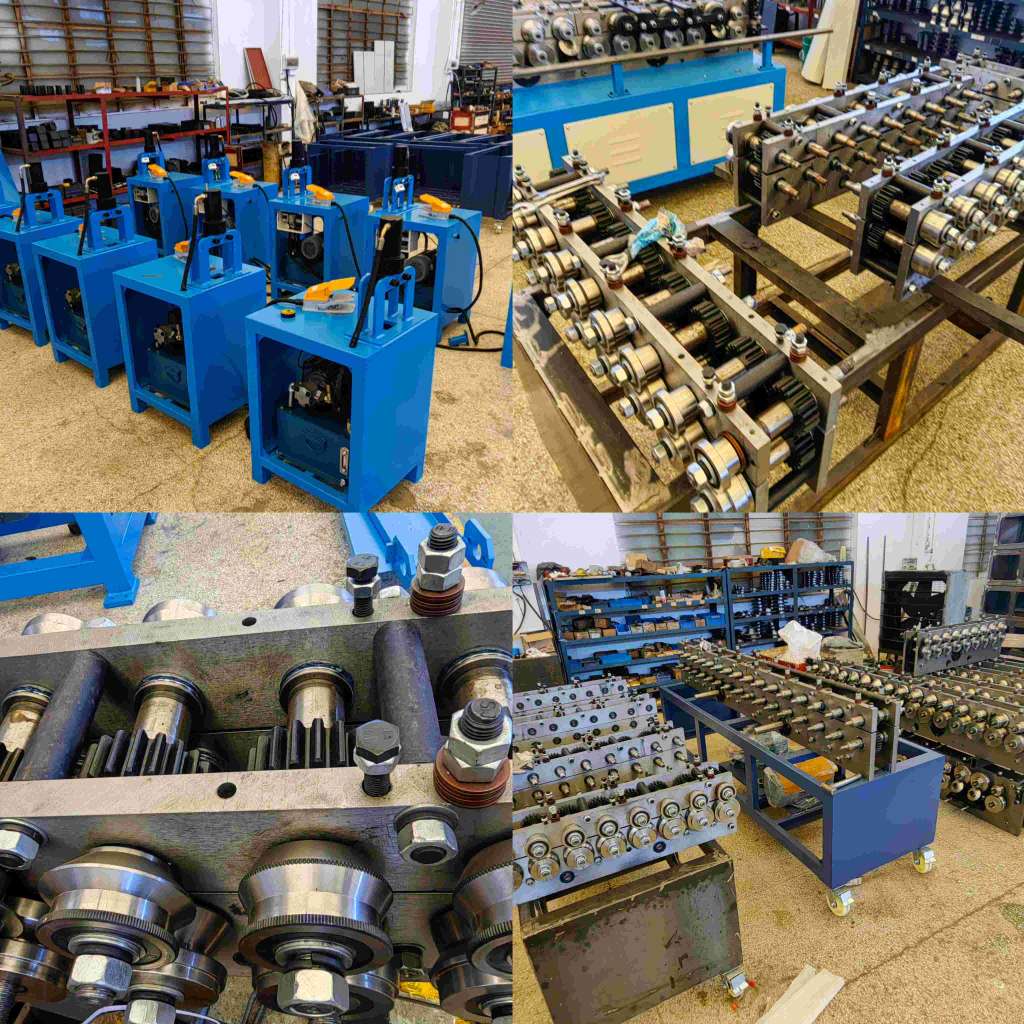

TDF Flange Machine Workshop video:

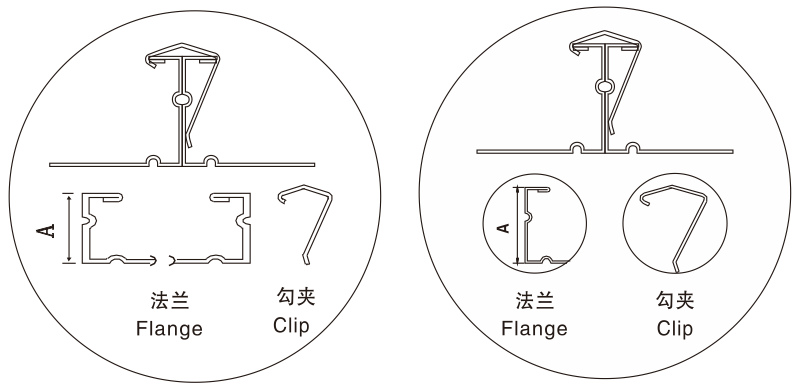

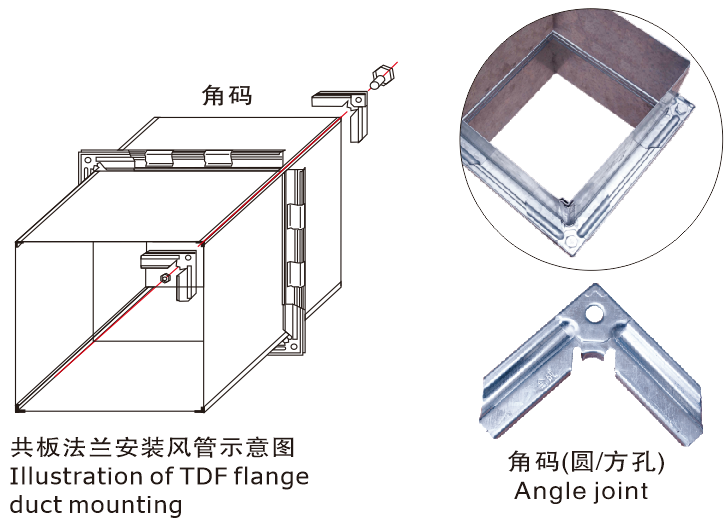

Finished product of TDF flange forming machine:

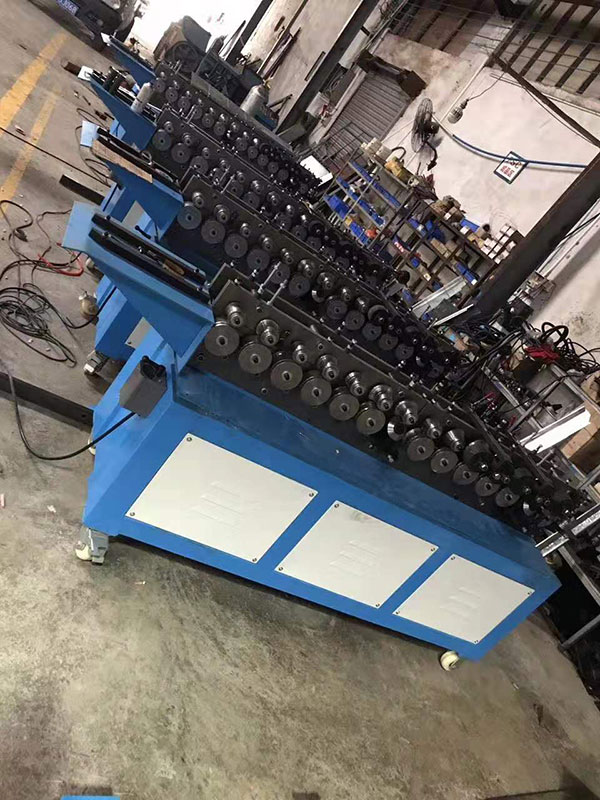

TDF FLANGE FORMING MACHINE detail:

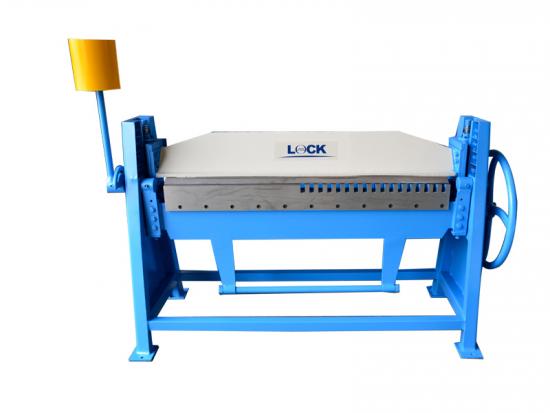

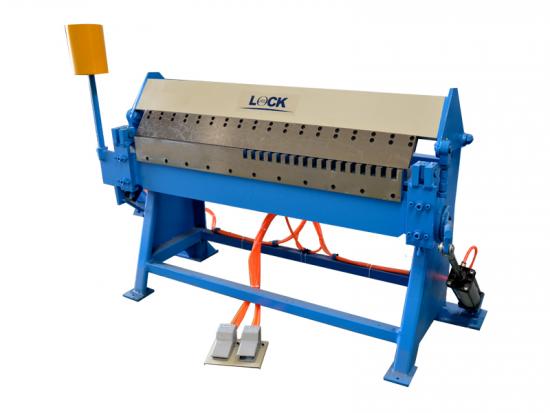

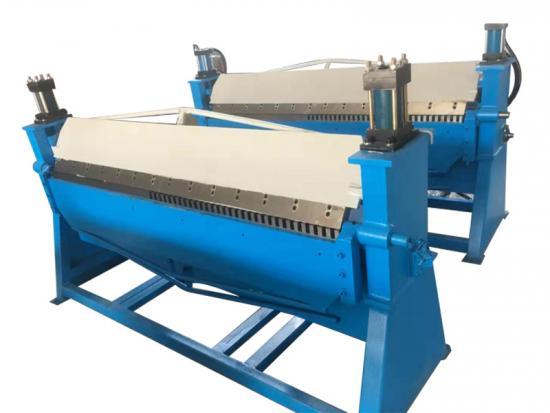

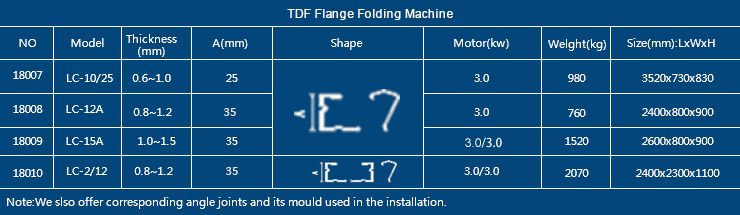

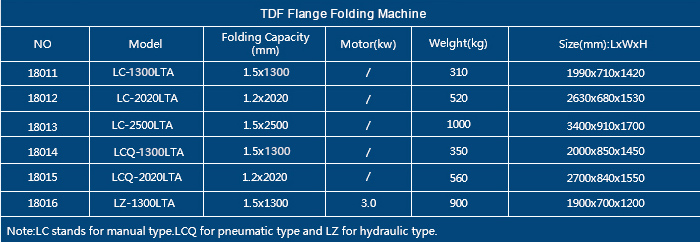

TDF Folding machine:
