Aluminum flexible tube machine

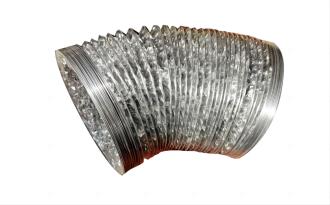

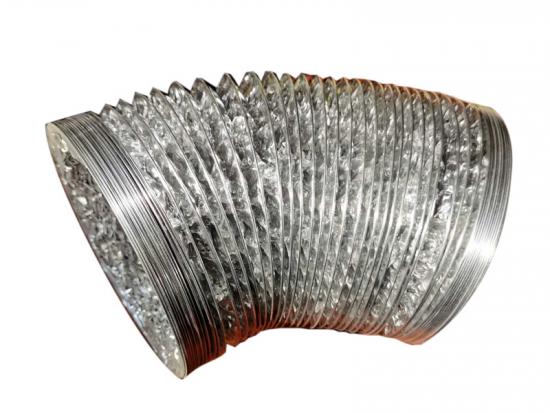

Besides the advantages of spiral tube machine, Al foil tube machine also features good retractility and incurvating capability. It suits in ventilation systems as low demand on installation with much bending paths, such as kitchen, toilet.

  • Product Details

Besides the advantages of spiral tube machine, Al foil tube machine also features good retractility and incurvating capability. It suits in ventilation systems as low demand on installation with much bending paths, such as kitchen, toilet.

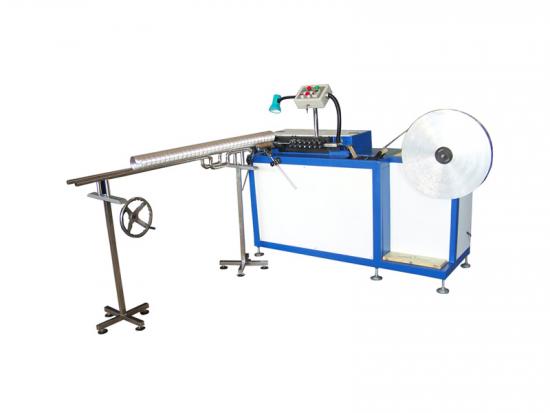

Aluminum Flexible Tube Forming Machine Video:

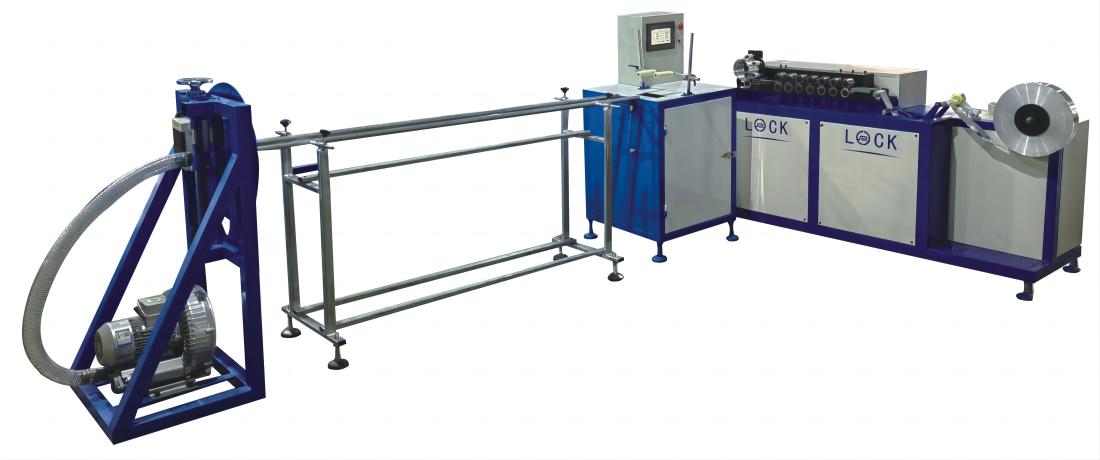

Aluminum flexible tube forming machine with automatic compressor of 3 meter video:

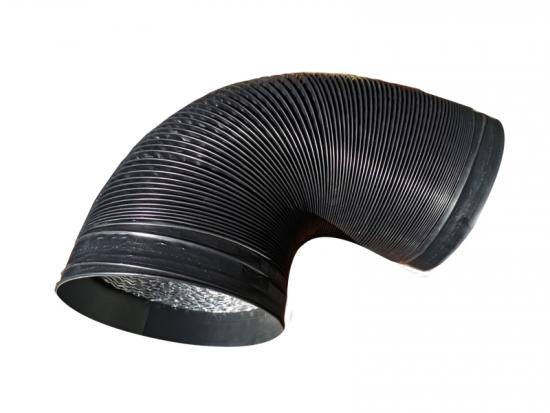

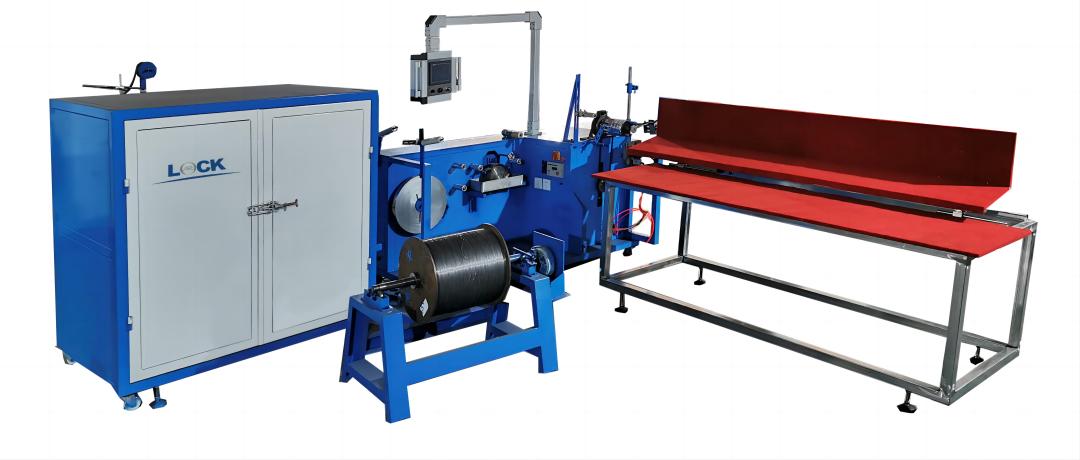

Rigid flexible tube forming machine:

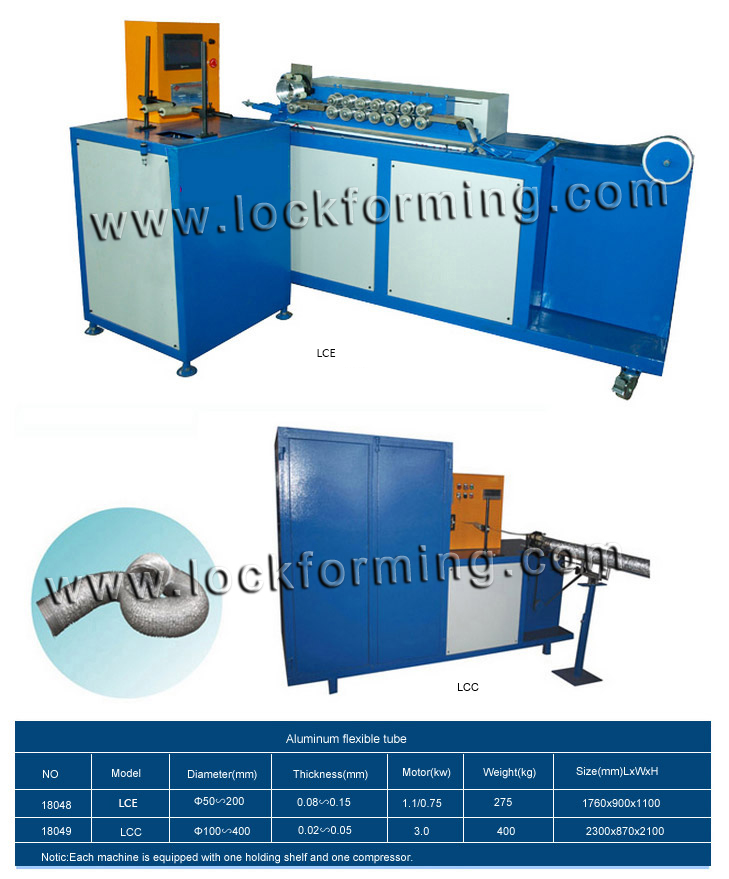

flexible tube forming machine①:

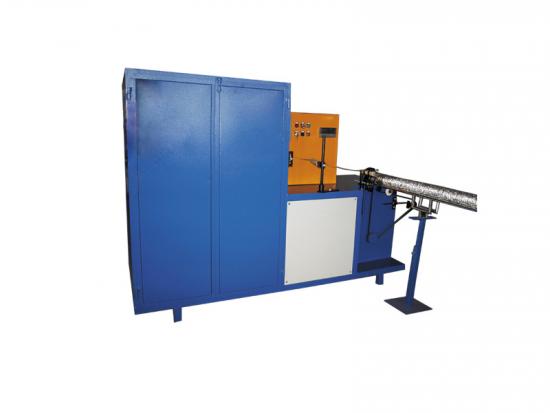

flexible tube forming machine②:


Get A Free Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Related Products
Lockformer spiral machine

HVAC Spiral Tube Forming Machine

The spiral air duct machine is divided into molding type of rolling cutting and steel strip of saw cutting. The molding of corresponding size must be used for each size of spiral air pipe. For the steel strip type,adopt different specifications and lengths of steel strip, can process the corresponding size of air duct.

Round angle iron punching machine

Round angle iron forming and bending machine

Circle angle iron forming machine employs coil  to form angle iron flange then cut off the processed work pieces with pleasant appearance and accurate dimensions. The equipment has advantage of compact structure and easy operation.Angle iron punching machine can be matched with the angle iron forming machine to produce perfect circle angle iron.

3-roller plate rolling machine

Motor-driven symmetric 3-roller plate bender

The 3-roller bending machine features the diamond structure and is used for thicker sheets. The upper roller can be lifted to facilitate plate removal.It is cut into two kinds:symmetric  and asymmetric.

Angle steel forming machine

Angle iron bender

With vertical structure, angle iron bender can bend various inner and outer angle iron. It also can roll round steel, round pipe,square pipe, U steel by changing rolling wheels. It is an ideal equipment for bending angle iron flange and section bars and widely used in construction, decoration, hardware, light industry, and chemical industries, etc.

Round duct beading machine

Duct rotary machine

Rotary machine used specialized rolling wheels to process the mental sheets into different shapes covering grooving,envelope line,flattening,cutting ,embossing and round elbow.

Spiral Gorelocker

Spiral elbow making machine

Spiral elbow making machine is of electric and hydraulic type, both of which have two functions: one is used to process single and double hem, and the other is used to press and connect.

Oval spiral machine

Oval spiral forming machine

Spiral ovalizer is used for the ovalizer duct manufacturing.After spiral duct,the ovalizer duct machine expands it into standard size,with the character of good shape,high efficiency,easy operation.It is indispensable for duct manufacturing.

 TDF folder

TDF flange forming machine

TDF flange forming machine applies both sides feeding and simultaneously shaping work mode, one side forming and one side forming is for installing hooks. TDF folder is with hydraulic,pneumatic,manual type.

Riveting platform

Riveting platform of fire damper machine

Fire damper riveting platform consist of frame riveting(four rivets),TDF corner riveter(four rivets),supporting bar riveting(two rivets) and baffler rivets(single rivet).

HVAC machinery

HVAC machinery line Ⅶ

HVAC duct line  Ⅶ ,with U-shaped structure not only saves the production site, but also reduces the delivery time of raw materials. The production efficiency is high (about 20-23 seconds per piece). The department fully automatically realizes the fixed size cutting, beading, automatic cutting ,the notching, single hem folding, pittsburgh forming, TDF flange and the angle iron flange ,automatically forming and bent into ”L“, ”U“, ”口“ shaped duct. Equipped with punching support air, TDF flange hole is optional. Pittsburgh is formed before bending the short side of the large size duct.C+S flange is optional.It has the advantages of high automation, high efficiency, labor saving and material saving.

Duct fabrication machinery

Air duct fabrication machine line V

Ventilation duct machine The air duct production line V is composed of feeding frame, leveling and beading, hydraulic punching point and square mouth, hydraulic shearer, movable pittsburgh forming machine,feeding platform, duplex flange machine, duplex angle iron flange machine (or double snap lock machine), servo feeding platform and TDF hydraulic folding. The computer control part adopts full computer control, bending with servo feeding, accurate positioning, especially when processing the bigger air duct, to ensure the bending accuracy.

HVAC duct fabrication machine

HVAC duct fabrication machineⅢ

HVAC duct fabrication machine Ⅲ features in high auomation,high efficiency and saving materials,which is very suitable for mass production of square ducts. Autoline - III consists of a metal feeding frame, leveling and grooving equipment, hydraulic punching square notch equipment, hydraulic cutter and folder. The electrical control system uses a computer with a closed-loop and servo-system to increase the precision and reliability of the manufacture line. The maximum working speed is 16m/min.The length tolerance is±0.3mm. The diagonal line tolerance is ±0.5mm.   One team will produce 1000㎡of square duct by using this system.
