First Product

|Duct GI manufacturing auto line VIII

Duct GI manufacturing auto line VIII

HVAC machine Air duct production line  Ⅷ is a new type of air duct automatic production line of our company. The U-shaped structure not only saves the production site, but also reduces the delivery time of raw materials. The production efficiency is high (about 20-23 seconds per piece). The department fully automatically realizes the fixed size cutting, beading, automatic cutting ,the notching, single hem forming, pittsburgh forming, TDF flange and the angle iron flange ,automatically forming and bent into ”L“, ”U“, ”口“ shaped duct. Equipped with punching support air, TDF flange hole is optional. Pittsburgh is formed before bending the short side of the large size duct. It has the advantages of high automation, high efficiency, labor saving and material saving.
  • Product Details

Characters of HVAC duct machine line Ⅷ:

HVAC machine HVAC product machine line is u-shaped distribution, small area, convenient installation, suitable for limited site manufacturers to use, fast, high efficiency.Average daily production duct is more than 2000 square meters. The production line has the automatic material-saving pattern, the processing plate has no scrap.

Duct Line Ⅷ Video:

Working Schematic Diagram for HVAC machine line:


Main Components:

Servo motor:Yasukawa

PLC:Panasonic

Electrical components: Schneider

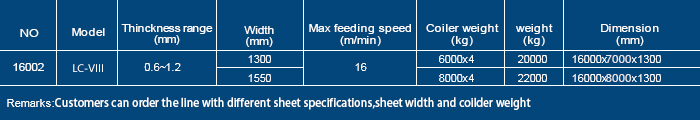

Duct Line Size Showing:

Duct Making Machine Basic Equipment:

Two sets of electrical decoiler

One set of leveling and grooving,shearing,folding device

Punching moulds

Punching hole on TDF flange(optional configuration)

Punching bracing hold for duct(optional configuration)

No.1 electrical feeding-platform

Pittsburgh lock former

No.2 electrical feeding-platform

Duplex angle-iron or standing seam flange former

Duplex TDF flange former

TDF hydraulic folder

Duct transmission rack

CNC control system and hydraulic system

Get A Free Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Related Products
Auto duct line

Air duct fabrication machine line V

Ventilation duct machine The air duct production line V is composed of feeding frame, leveling and beading, hydraulic punching point and square mouth, hydraulic shearer, movable pittsburgh forming machine,feeding platform, duplex flange machine, duplex angle iron flange machine (or double snap lock machine), servo feeding platform and TDF hydraulic folding. The computer control part adopts full computer control, bending with servo feeding, accurate positioning, especially when processing the bigger air duct, to ensure the bending accuracy.

HVAC duct fabrication machine

HVAC duct fabrication machineⅢ

HVAC duct fabrication machine Ⅲ features in high auomation,high efficiency and saving materials,which is very suitable for mass production of square ducts. Autoline - III consists of a metal feeding frame, leveling and grooving equipment, hydraulic punching square notch equipment, hydraulic cutter and folder. The electrical control system uses a computer with a closed-loop and servo-system to increase the precision and reliability of the manufacture line. The maximum working speed is 16m/min.The length tolerance is±0.3mm. The diagonal line tolerance is ±0.5mm.   One team will produce 1000㎡of square duct by using this system.

HVAC machinery

HVAC machinery line Ⅶ

HVAC duct line  Ⅶ ,with U-shaped structure not only saves the production site, but also reduces the delivery time of raw materials. The production efficiency is high (about 20-23 seconds per piece). The department fully automatically realizes the fixed size cutting, beading, automatic cutting ,the notching, single hem folding, pittsburgh forming, TDF flange and the angle iron flange ,automatically forming and bent into ”L“, ”U“, ”口“ shaped duct. Equipped with punching support air, TDF flange hole is optional. Pittsburgh is formed before bending the short side of the large size duct.C+S flange is optional.It has the advantages of high automation, high efficiency, labor saving and material saving.

pittsburgh duct seam

Pittburgh lock forming machine

Duct lock forming machines can process galvanized sheet with different thickness into various shapes,such as profile pittsburgh,single hem,double hem,snap hem,elbow,S shape and so on.
