First Product

|LCD Plasma Cutting Machine

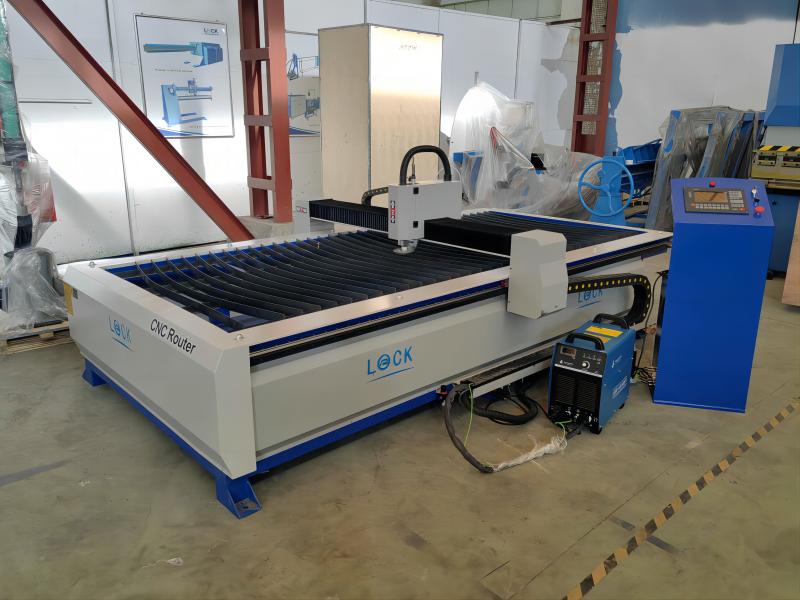

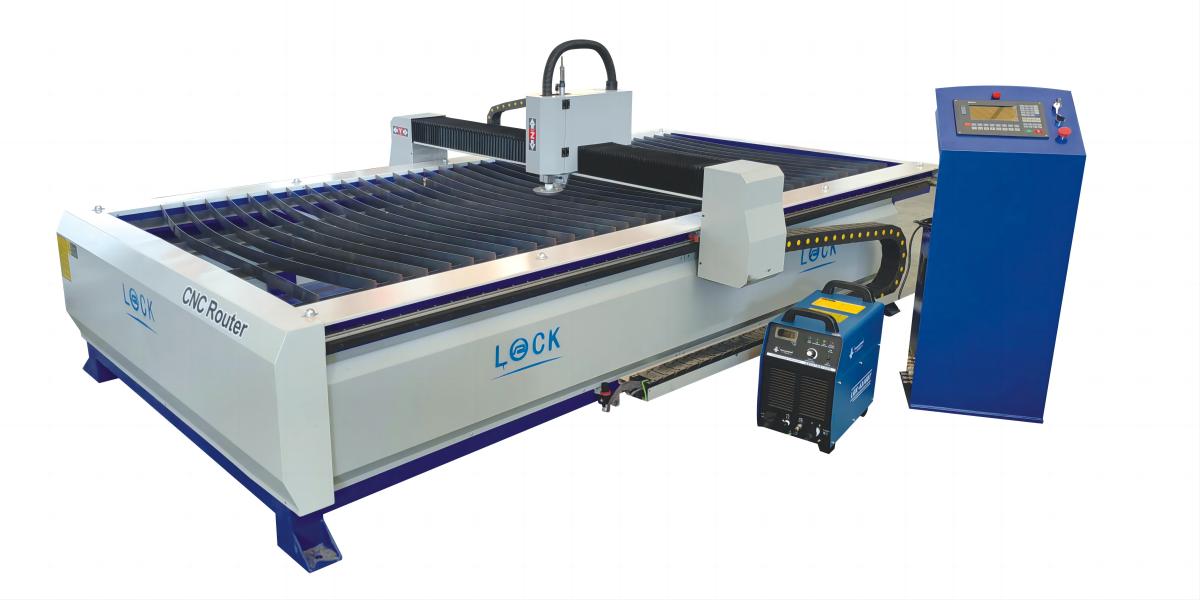

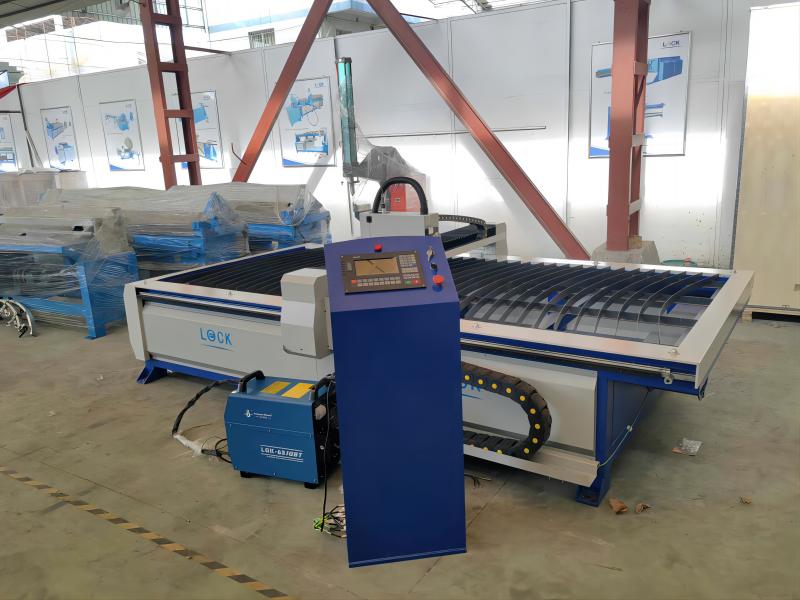

LCD Plasma Cutting Machine

HVAC plasma cutting machine is  mainly consists of the host system and its associate software system. The electrical control system is mastered by computer and equipped with excellent cutting software which is often used for different kinds of duct blanking.

  • Product Details

  To meet market demand, our company absorbs advanced technologies at home and abroad to manufacture

plasma cutting machine. The machine mainly consists of the host system and its associated software system.The
electrical control system is mastered by computer and equipped with excellent cutting software which is often used for lofting cutitng for making all kinds of elbow.Stable CNC system together with the famous HYPERTHERM plasma generator help greatly improve the cutting quality. Thus it is an ideal equipment for cutting metal sheet.

HVAC plasma cutting machine video:

Duct Software of HVAC Plasma Cutting Machine :
It adopts the special cutting software, which executes the pre-set standardized duct graphs database and parameters to meet the cutting requirement. It is a synthesis of machine tool technology, data procedure and management. This software is easy to operate. When detailed data is entered, the synthesized image will take shaped automatically.

HVAC plasma cutting machine detail:

PlasamaGenerator:

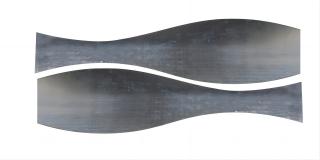

  It is equipped with the famous HYPERTHERM plasma generator from America, which eatures tiny kerf,and

stable and excellent performance, consequently, the cutting quality is guaranteed.

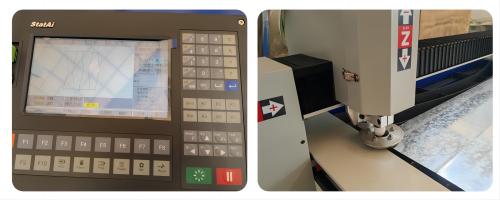

DuctSoftware:

  It adopts the special cutting software,which executes the pre-set standarized duct graphs and parameters to
meet the cutting requirement.It is a synthesis of machine tool technology,data procedure and management.This
software is easy to operate.When detailed dates are entered, the synthesized image will take shape automatically.
