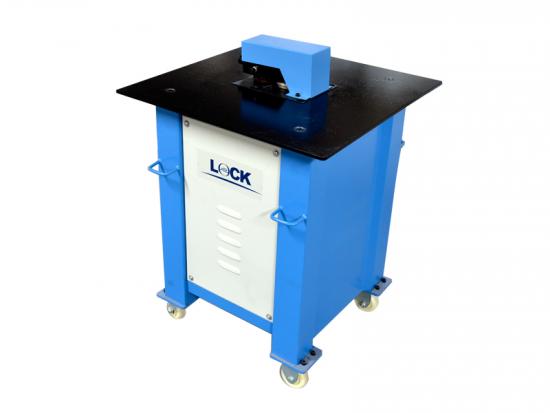

Pittburgh lock forming machine

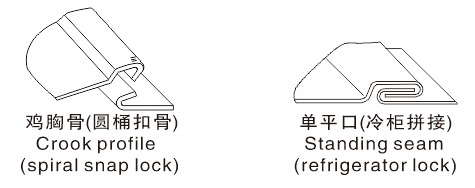

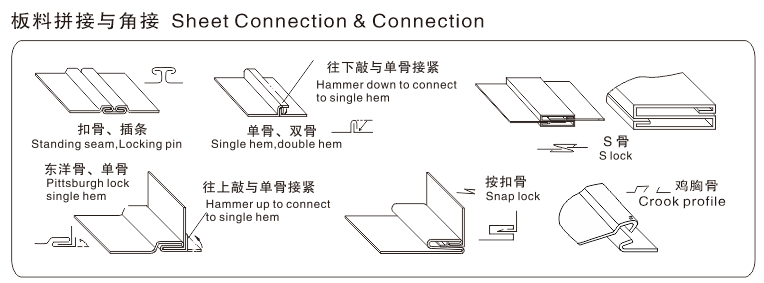

Duct lock forming machines can process galvanized sheet with different thickness into various shapes,such as profile pittsburgh,single hem,double hem,snap hem,elbow,S shape and so on.

Contact Now Whatsapp

Product Categories

Hot products

Product Details

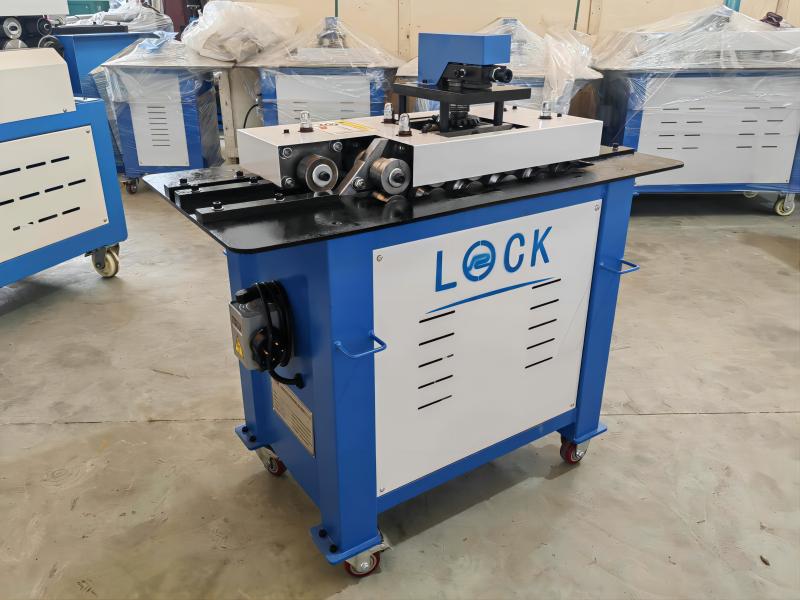

HVAC Duct Pittsburgh Lock Forming Machine | Sheet Metal Lockformer

1. Product Overview & Key Advantages

The Standard Duct Lock Forming Machine is an essential piece of equipment for the HVAC (Heating, Ventilation, and Air Conditioning) duct fabrication and sheet metal processing industry. Designed for high efficiency and precision, our lockformers can smoothly process galvanized steel sheets with thicknesses ranging from 0.3mm to 1.5mm (up to 2.0mm for heavy-duty models).

Why Choose Our Lock Forming Machines?

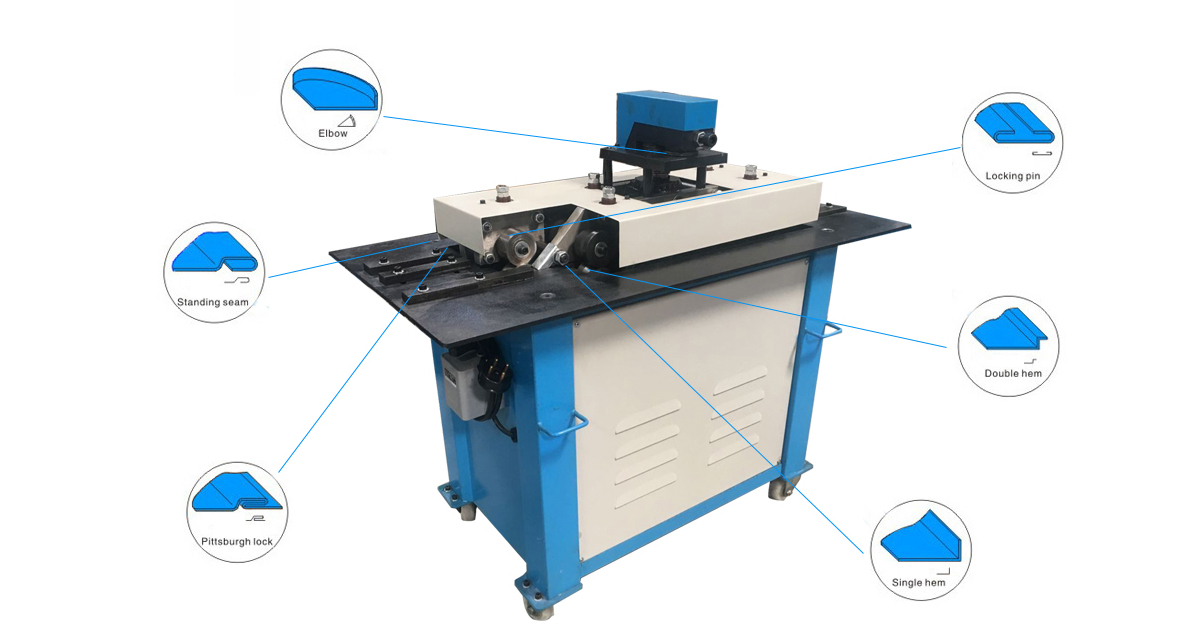

Multi-Profile Versatility: Advanced models like the LCD4C and LC-12M (with 9 stations) can process up to 6 different kinds of profiles, including Pittsburgh seam, S-cleat, drive cleat, and snap lock.
High Portability for Site Use: Featuring a compact and lightweight design, our machines are easy to move, making them perfectly suitable for both factory workshops and on-site construction projects.
Custom Engineered Solutions: If your project requires non-standard profiles, our engineering team can design special machines tailored to your exact specifications.

2. Technical Specifications by Model

Model	Application	Stations	Max Thickness (mm)	Profiles Made
LC-12M	Multi-functional	9 Stations	1.2mm	4 Profiles (Pittsburgh, etc.)
LC-15 DR	Pittsburgh Seam	[Insert Data]	1.5mm	Pittsburgh
LC-15SR	Stainless Steel	[Insert Data]	1.5mm (SS)	Pittsburgh
R-18	Snap Lock Elbow	[Insert Data]	1.0mm	Snap Lock
LC-20	High Speed Forming	[Insert Data]	2.0mm	High-speed Seam

3. Machine Details & Craftsmanship

Premium Rollers: Made from high-quality steel, heat-treated for maximum wear resistance, ensuring smooth sheet metal feeding without scratching the galvanized layer.
Stable Transmission: Heavy-duty gearbox and powerful motor guarantee stable operation even during high-speed continuous processing.
User-Friendly Adjustment: Easy hand-wheel adjustments allow operators to quickly switch between different sheet thicknesses.

Premium rollers of Pittsburgh lock forming machine

Heavy duty transmission system of lockformer

Hand-wheel adjustment for duct seam machine

4. Working Videos by Model

Watch our lockformers in action to see their speed, precision, and stability:

Multi-Profile Processing (LC-12M):
Stainless Steel Processing (LC-15SR):
High-Speed Production (LC-20):

5. Frequently Asked Questions (FAQ)

Q1: What materials can this lockformer process?

A: Our standard machines are optimized for galvanized steel sheets (0.3-1.5mm). We also offer specific models like the LC-15SR designed exclusively for stainless steel processing.

Q2: Is the machine easy to transport to a construction site?

A: Yes, the machine is designed to be lightweight and portable, equipped with lifting points for easy transportation to job sites for on-site duct fabrication.

Q3: Can I customize the roller profiles?

A: Absolutely. While our machines cover standard HVAC profiles (Pittsburgh, S-cleat), we provide OEM/ODM services to design custom rollers for your specific profile needs.

Q4: What is the power supply requirement?

A: We can customize the motor voltage (e.g., 220V/380V/415V, 50Hz/60Hz, 3-Phase) to match your local electrical standards.
