Fire Damper Manufacture Auto Line

|Blade forming machine for fire damper machine

Blade forming machine for fire damper machine

The blade forming machine for fire damper machine adopts PLC control, LCD touch screen, human-computer interface. Realize the interaction between human and Panasonic PLC. The operator can automatically run (programmable control) and monitor the control process through the set program, so as to realize the operator to control the production line and modify the control parameters, and monitor the equipment operation status, operation parameters and fault indication in real time. The length of the work piece can be adjusted.

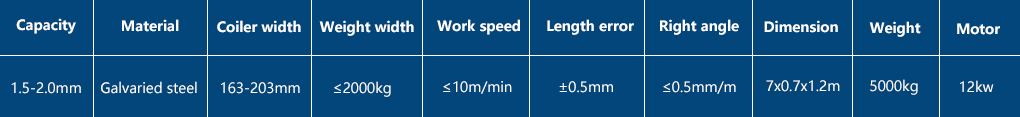

  • Product Details

Electrical control system of blade forming machine:
PLC: Panasonic of fpx-c30t
True color touch screen: Taiwan Winon
Detection encoder: Japan internal secret control encoder
Servo drive system: Viktor (or invetion) servo drive system
Low voltage electrical appliances: circuit breakers and contactors are domestic famous brand "Chint" electrical appliances, and relays are "Omron" or "Schneider".

Finished Products:

Product drawing:


Description of function:

● Servo driving,full automation operation

●Fixed width

●Square beading or circular beading is available

●Opening or unopened is available

●Punching leaflets and flying fixed hole is available

●Fixed length shearer

●Continuous order production

Basic Configuration:

1.One powerless decoiler

2.One set of blades forming machine

3.One suit of hydraulic shearer

4.One suit of automatic opening device

5.One set of collecting platform

6.One suit of digital controlling system

7.One suit of hydraulic system
