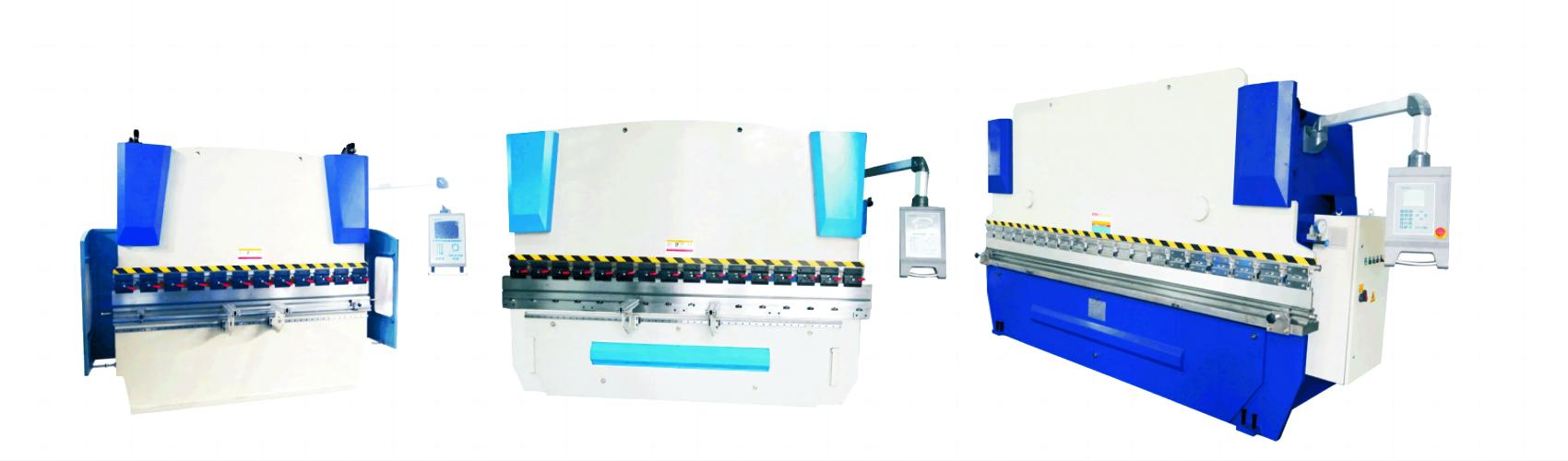

CNC Press Brake

The main function of press brake is for metal processing industry. The products are widely used in light industry, aviation, shipbuilding, metallurgy, instruments, electrical appliances, stainless steel products, steel structure construction and decoration industries. Hydraulic bending machine is the first choice for sheet metal processing of sheet metal, especially for large sheet metal. By selecting and matching different molds, the sheet metal can be bent, stretched, pressed, punched, etc.

Product Categories

Hot products

  • Product Details
FEATURES of Press Brake:
1.The machine frame is heaviest welded construction,stress released by
 vibration aging process, minimizing the deflection of the frame.
2. CNC system control hydraulic flexible compensation working table.
3.Bosch high performance electric hydraulic proportional system.
4.Germany Heidenhain press brake special grating system.
5.The Netherland/Switzerland CNC control system.
6.Hiwin line guide and ball screw.

7.Yaskawa high efficiency AC servo motor and driver.

型号
Model 		公称压力
Pressure
(KN) 		工作台长
Work table
Length (mm) 		立柱间距离
Distance of poles
(mm) 		最大开启高度
Max open Height
(mm) 		滑块行程
Stroke Distance
(mm) 		侯口深度
Groone Depth
(mm) 		滑块速度
Stroke Speed
(mm/s) 		电机功率
Main motor
Power (Kw) 		油泵排量
Pump
Displacement
(LM/R) 		外形尺寸
Dimension
(mm) 		重量
Gross weight
(KG)
快下
Up 		工进
Work 		回程
Return 		长
Length 		宽
Width 		高
Height
WC67K-63T/2500 630 2500 2050 450 150 300 80 10 70 5.5 11 2600 1350 2400 4800
WC67K-100T/2500 1000 2500 2050 450 180 320 100 9.5 80 7.5 16 2600 1350 2400 4800
WC67K-100T/3200 1000 3200 2700 450 180 320 100 9.5 80 7.5 16 3300 1400 2500 7300
WC67K-100T/4000 1000 4000 3300 450 180 320 100 9.5 80 7.5 16 4100 1400 2700 8800
WC67K-125T/3200 1250 3200 2700 450 180 320 100 9 85 11 20 3300 1500 2800 8000
WC67K-125T/4000 1250 4000 3300 450 180 320 100 9 85 11 20 4100 1500 2820 9500
WC67K-160T/3200 1600 3200 2700 500 220 320 100 9.5 90 15 25 3300 1650 2710 10700
WC67K-160T/4000 1600 4000 3300 500 220 320 100 9.5 90 15 25 4100 1650 2910 12500
WC67K-200T/3200 2000 3200 2700 500 220 350 100 9.5 90 15 32 3300 1900 2860 12000
WC67K-200T/4000 2000 4000 3300 500 220 350 100 9.5 90 15 32 4100 1900 3010 14500
