|QC12YSeries Hydraulic Pendulum Shearing Machine
Hydraulic shearer Hydraulic shearer

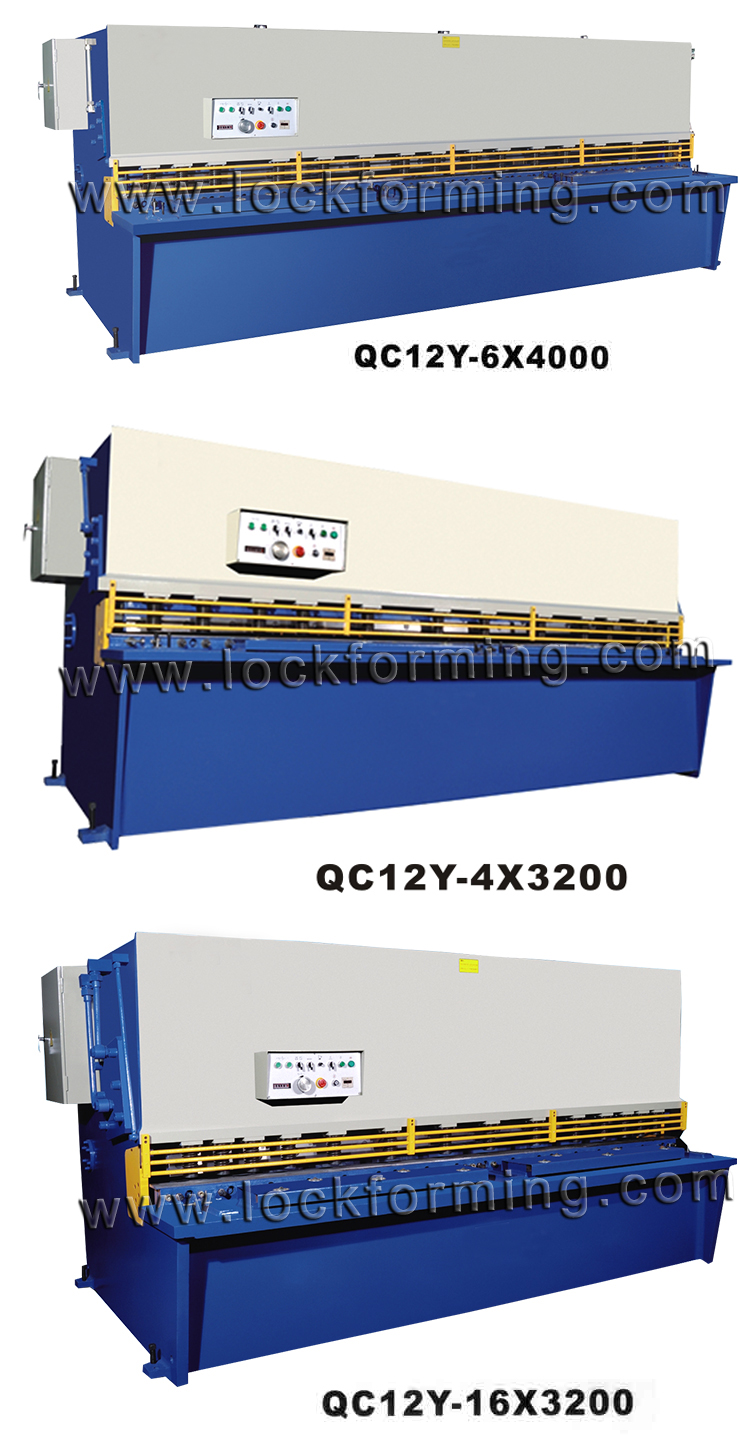

QC12YSeries Hydraulic Pendulum Shearing Machine

Hydraulic shearer is of high strength cast iron body, fixed table structure, increased stability. It adopts a through shaft structure and a cast steel clutch. The shaft is a new type of wear-resistant shaft sleeve. Large machine tools are all made of cast steel gears. Greatly extend the service life. The electric appliance adopts domestic and foreign famous brand products, equipped with two hand starting device, centralized lubrication of oil pump, optional photoelectric protection and automatic centralized oil supply, and can be used in combination with a variety of CNC feeding systems.


Product Categories

Hot products

  • Product Details


  All steel plate welding frame,strong strength and rigidity; Hydraulic pressure device,and reliable safety
barrier cutting edge clearance,rapid adjustment of honey tool holder stroke adjustable when cutting narrow
material can improve production efficiency; The distance of rear stopper is adjusted by electric adjustment and

manual fine adjustment. Shear counting device, light line device, easy to cut line.


1.The whole steel welded frame with full strength and rigidity
2.Hvdraulic press device with reliabl safety railings.
3.Adopting quick adjustment of cuting stroke and adjustable cutting
frame to improve production efficiency when cutting shor sheet.

4.Back-gauge station adopts motor-drive measure with fine manual aAiuslment.

5.Cutting counting
6.Light line device,easy to draw line for cutting.

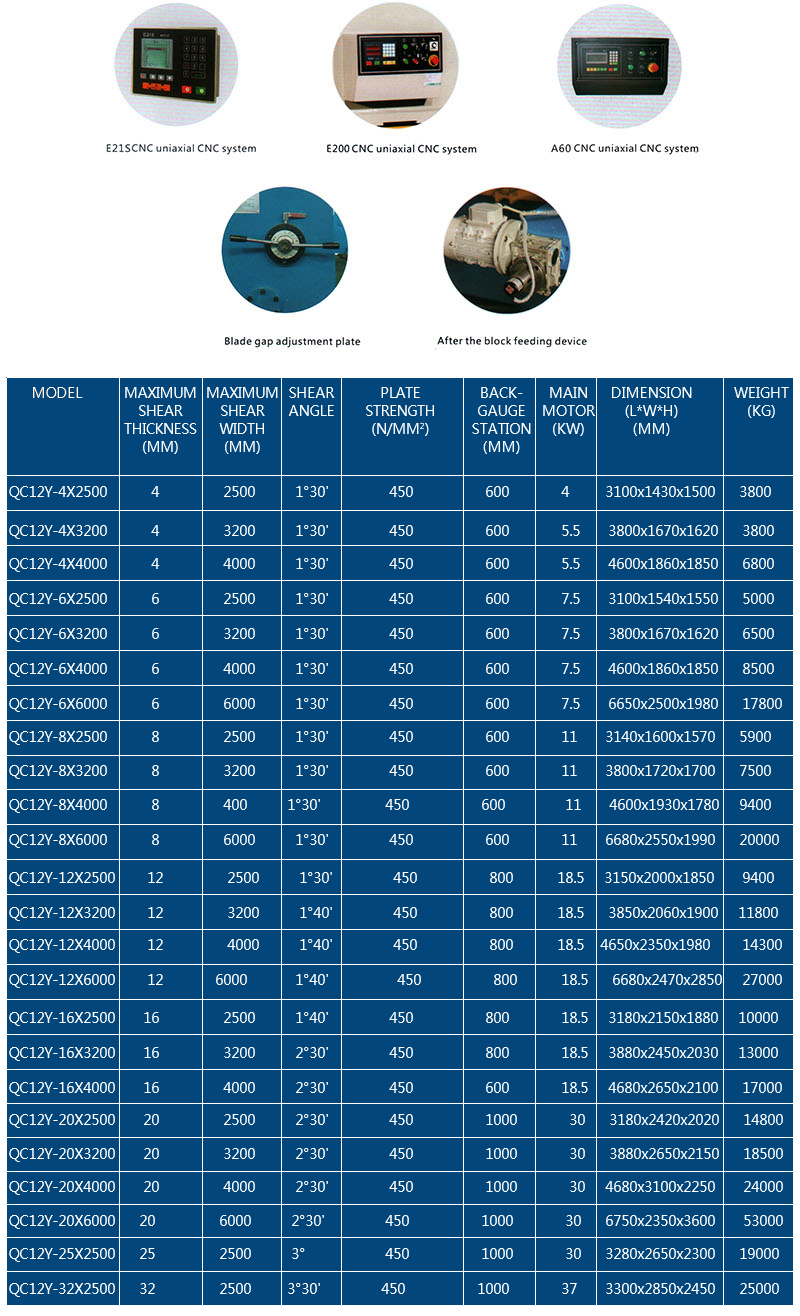

技术规格
Model 		最大可剪板厚
Maximum shear
thickness (mm) 		最大可剪板宽
Maximum shear
width(mm) 		剪切角
shear angle
(mm) 		剪切板料强度
Plate strength
(n/mm²) 		后挡料距离
Back-gauge
station(mm) 		主电机功率
Main motor
(kw) 		外形尺寸（长×宽×高）
Dimension
(L×W×H)(mm) 		机床重量
Weight
(kg)
QC12Y-4×2500 4 2500 1°30′ 450 600 4 3100×1430×1500 3800
QC12Y-4×3200 4 3200 1°30′ 450 600 5.5 3800×1670×1620 5300
QC12Y-4×4000 4 4000 1°30′ 450 600 5.5 4600×1860×1850 6800
QC12Y-6×2500 6 2500 1°30′ 450 600 7.5 3100×1540×1550 5000
QC12Y-6×3200 6 3200 1°30′ 450 600 7.5 3800×1670×1620 6500
QC12Y-6×4000 6 4000 1°30′ 450 600 7.5 4600×1860×1850 8500
QC12Y-6×6000 6 6000 1°30′ 450 600 7.5 6650×2500×1980 17800
QC12Y-8×2500 8 2500 1°30′ 450 600 11 3140×1600×1570 5900
QC12Y-8×3200 8 3200 1°30′ 450 600 11 3800×1720×1700 7500
QC12Y-8×4000 8 4000 1°30′ 450 600 11 4600×1930×1780 9400
QC12Y-8×6000 8 6000 1°30′ 450 600 11 6680×2550×1990 20000
QC12Y-12×2500 12 2500 1°30′ 450 800 18.5 3150×2000×1850 9400
QC12Y-12×3200 12 3200 1°40′ 450 800 18.5 3850×2060×1900 11800
QC12Y-12×4000 12 4000 1°40′ 450 800 18.5 4650×2350×1980 14300
QC12Y-12×6000 12 6000 1°40′ 450 800 18.5 6680×2470×2850 27000
QC12Y-16×2500 16 2500 1°40′ 450 800 18.5 3180×2150×1880 10000
QC12Y-16×3200 16 3200 2°20′ 450 800 18.5 3880×2450×2030 13000
QC12Y-16×4000 16 4000 2°30′ 450 800 18.5 4680×2650×2100 17000
QC12Y-20×2500 20 2500 2°30′ 450 1000 30 3180×2420×2020 14800
QC12Y-20×3200 20 3200 2°30′ 450 1000 30 3880×2650×2150 18500
QC12Y-20×4000 20 4000 2°30′ 450 1000 30 4680×3100×2250 24000
QC12Y-20×6000 20 6000 2°30′ 450 1000 30 6750×2350×3600 53000
QC12Y-25×2500 25 2500 3° 450 1000 30 3280×2650×2300 19000
QC12Y-32×2500 32 2500 3°30′ 450 1000 37 3300×2850×2450 25000
