|QC11YSeries-Hydraulic Brake Plate Shearing Machine
Guillotine Guillotine Guillotine

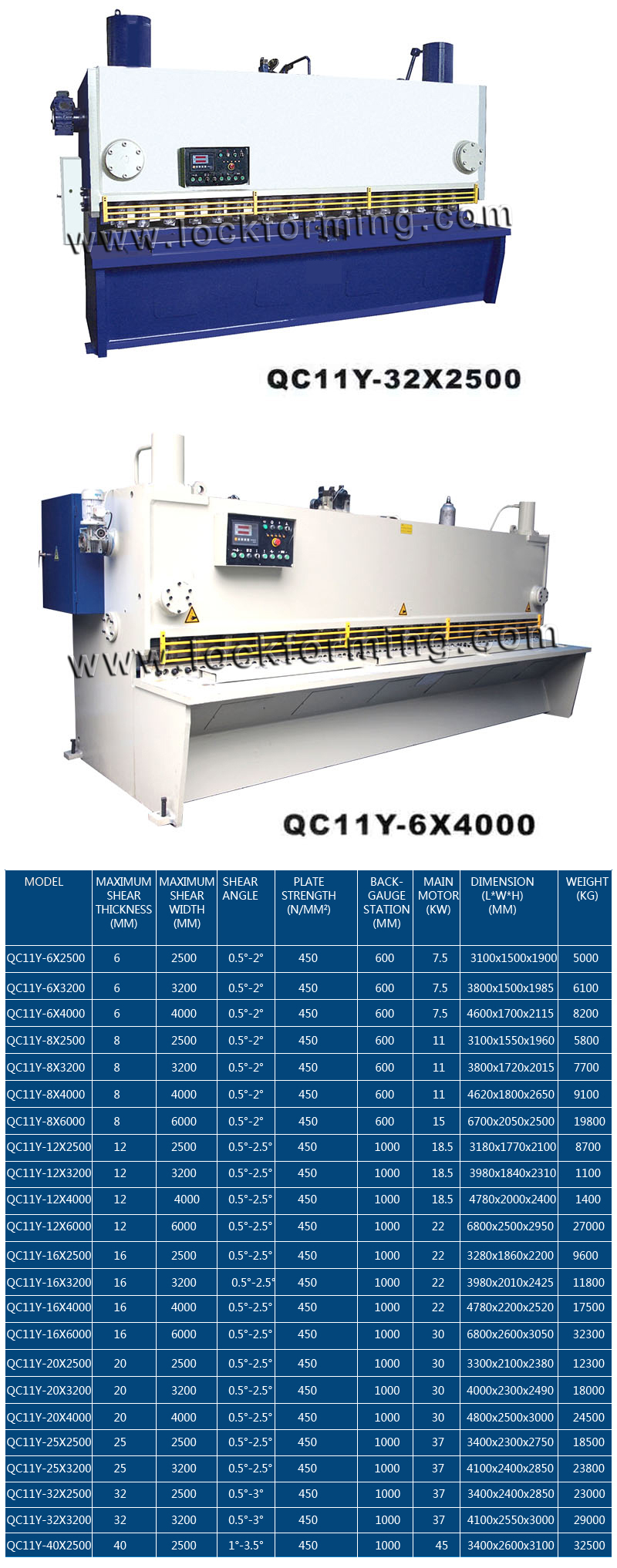

QC11YSeries-Hydraulic Brake Plate Shearing Machine

Hydraulic guillotine shearer is of high strength cast iron body, fixed table structure, increased stability. It adopts a through shaft structure and a cast steel clutch. The shaft is a new type of wear-resistant shaft sleeve. Large machine tools are all made of cast steel gears. Greatly extend the service life. The electric appliance adopts domestic and foreign famous brand products, equipped with two hand starting device, centralized lubrication of oil pump, optional photoelectric protection and automatic centralized oil supply, and can be used in combination with a variety of CNC feeding systems.


Product Categories

Hot products

  • Product Details


  Equipped with E10\E20 digital display system, all-steel welding frame, advanced hydraulic inheritance system,compact structure, high reliability; The rolling guide rail is used to eliminate the clearance and improve the shear quality. The shear Angle is adjusted electrically to reduce the deformation of the shear plate.Electric adjustment rear stopper positioning, accurate position display; Configuration of the mean return accumulator, smooth and fast.


1.Equipped with E10\E20 control system
2.Integrated hydraulic system, more reliable.
3.Eliminate gaps by screw ball guide-rail, improve shearing quality
4.Minimize Shearing plate deformation by motorized shearing angl
5.Motorized blades clearance adjustment.
6.Motorized back gauge with digital read-out, precision positon display.


7.Equipped with dedicated stable and rapid return accumulato

技术规格
Model
最大可剪板厚
Maximum shear
thickness (mm)
最大可剪板宽
Maximum shear
width(mm)
剪切角
shear angle
(mm)
剪切板料强度
Plate strength
(n/mm²)
后挡料距离
Back-gauge
station(mm)
主电机功率
Main motor
(kw)
外形尺寸（长×宽×高）
Dimension
(L×W×H)(mm)
机床重量
Weight
(kg)
QC12Y-4×2500 4 2500 1°30′ 450 600 4 3100×1430×1500 3800
QC12Y-4×3200 4 3200 1°30′ 450 600 5.5 3800×1670×1620 5300
QC12Y-4×4000 4 4000 1°30′ 450 600 5.5 4600×1860×1850 6800
QC12Y-6×2500 6 2500 1°30′ 450 600 7.5 3100×1540×1550 5000
QC12Y-6×3200 6 3200 1°30′ 450 600 7.5 3800×1670×1620 6500
QC12Y-6×4000 6 4000 1°30′ 450 600 7.5 4600×1860×1850 8500
QC12Y-6×6000 6 6000 1°30′ 450 600 7.5 6650×2500×1980 17800
QC12Y-8×2500 8 2500 1°30′ 450 600 11 3140×1600×1570 5900
QC12Y-8×3200 8 3200 1°30′ 450 600 11 3800×1720×1700 7500
QC12Y-8×4000 8 4000 1°30′ 450 600 11 4600×1930×1780 9400
QC12Y-8×6000 8 6000 1°30′ 450 600 11 6680×2550×1990 20000
QC12Y-12×2500 12 2500 1°30′ 450 800 18.5 3150×2000×1850 9400
QC12Y-12×3200 12 3200 1°40′ 450 800 18.5 3850×2060×1900 11800
QC12Y-12×4000 12 4000 1°40′ 450 800 18.5 4650×2350×1980 14300
QC12Y-12×6000 12 6000 1°40′ 450 800 18.5 6680×2470×2850 27000
QC12Y-16×2500 16 2500 1°40′ 450 800 18.5 3180×2150×1880 10000
QC12Y-16×3200 16 3200 2°20′ 450 800 18.5 3880×2450×2030 13000
QC12Y-16×4000 16 4000 2°30′ 450 800 18.5 4680×2650×2100 17000
QC12Y-20×2500 20 2500 2°30′ 450 1000 30 3180×2420×2020 14800
QC12Y-20×3200 20 3200 2°30′ 450 1000 30 3880×2650×2150 18500
QC12Y-20×4000 20 4000 2°30′ 450 1000 30 4680×3100×2250 24000
QC12Y-20×6000 20 6000 2°30′ 450 1000 30 6750×2350×3600 53000
QC12Y-25×2500 25 2500 3° 450 1000 30 3280×2650×2300 19000
QC12Y-32×2500 32 2500 3°30′ 450 1000 37 3300×2850×2450 25000
