First Product

|HVAC plasma cutting machine

HVAC plasma cutting machine

HVAC plasma cutting machine is  mainly consists of the host system and its associate software system. The electrical control system is mastered by computer and equipped with excellent cutting software which is often used for different kinds of duct blanking.

  • Product Details

Stable CNC system together with stable plasma generator help greatly improve the cutting quality. (famous HYPERTHERM generator is optional).

To meet market demand, the company absorbs advanced technologies at this industry. Thus Plasma Cutting Machine is an ideal equipment for cutting metal sheet.

HVAC plasma cutting machine video:

Duct Software of HVAC Plasma Cutting Machine :
It adopts the special cutting software, which executes the pre-set standardized duct graphs database and parameters to meet the cutting requirement. It is a synthesis of machine tool technology, data procedure and management. This software is easy to operate. When detailed data is entered, the synthesized image will take shaped automatically.

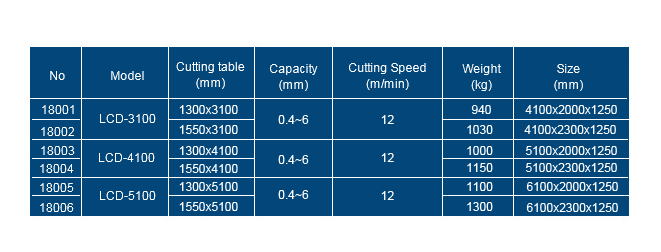

HVAC plasma cutting machine detail:

Software Drawing Showing:


Remark: due to the continuous improvement of the product, the technical parameters are subject to the latest standards without prior notice


Get A Free Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Related Products
Duct GI manufacturing auto line

Duct GI manufacturing auto line VIII

HVAC machine Air duct production line  Ⅷ is a new type of air duct automatic production line of our company. The U-shaped structure not only saves the production site, but also reduces the delivery time of raw materials. The production efficiency is high (about 20-23 seconds per piece). The department fully automatically realizes the fixed size cutting, beading, automatic cutting ,the notching, single hem forming, pittsburgh forming, TDF flange and the angle iron flange ,automatically forming and bent into ”L“, ”U“, ”口“ shaped duct. Equipped with punching support air, TDF flange hole is optional. Pittsburgh is formed before bending the short side of the large size duct. It has the advantages of high automation, high efficiency, labor saving and material saving.

Auto duct line

Air duct fabrication machine line V

Ventilation duct machine The air duct production line V is composed of feeding frame, leveling and beading, hydraulic punching point and square mouth, hydraulic shearer, movable pittsburgh forming machine,feeding platform, duplex flange machine, duplex angle iron flange machine (or double snap lock machine), servo feeding platform and TDF hydraulic folding. The computer control part adopts full computer control, bending with servo feeding, accurate positioning, especially when processing the bigger air duct, to ensure the bending accuracy.

HVAC duct fabrication machine

HVAC duct fabrication machineⅢ

HVAC duct fabrication machine Ⅲ features in high auomation,high efficiency and saving materials,which is very suitable for mass production of square ducts. Autoline - III consists of a metal feeding frame, leveling and grooving equipment, hydraulic punching square notch equipment, hydraulic cutter and folder. The electrical control system uses a computer with a closed-loop and servo-system to increase the precision and reliability of the manufacture line. The maximum working speed is 16m/min.The length tolerance is±0.3mm. The diagonal line tolerance is ±0.5mm.   One team will produce 1000㎡of square duct by using this system.

HVAC machinery

HVAC machinery line Ⅶ

HVAC duct line  Ⅶ ,with U-shaped structure not only saves the production site, but also reduces the delivery time of raw materials. The production efficiency is high (about 20-23 seconds per piece). The department fully automatically realizes the fixed size cutting, beading, automatic cutting ,the notching, single hem folding, pittsburgh forming, TDF flange and the angle iron flange ,automatically forming and bent into ”L“, ”U“, ”口“ shaped duct. Equipped with punching support air, TDF flange hole is optional. Pittsburgh is formed before bending the short side of the large size duct.C+S flange is optional.It has the advantages of high automation, high efficiency, labor saving and material saving.

pittsburgh duct seam

Pittburgh lock forming machine

Duct lock forming machines can process galvanized sheet with different thickness into various shapes,such as profile pittsburgh,single hem,double hem,snap hem,elbow,S shape and so on.

Hydraulic shearer

Hydraulic swing beam shearer

Hydraulic shearer is of high strength cast iron body, fixed table structure, increased stability. It adopts a through shaft structure and a cast steel clutch. The shaft is a new type of wear-resistant shaft sleeve. Large machine tools are all made of cast steel gears. Greatly extend the service life. The electric appliance adopts domestic and foreign famous brand products, equipped with two hand starting device, centralized lubrication of oil pump, optional photoelectric protection and automatic centralized oil supply, and can be used in combination with a variety of CNC feeding systems.

Duct fabrication machinery

Air duct fabrication machine line V

Ventilation duct machine The air duct production line V is composed of feeding frame, leveling and beading, hydraulic punching point and square mouth, hydraulic shearer, movable pittsburgh forming machine,feeding platform, duplex flange machine, duplex angle iron flange machine (or double snap lock machine), servo feeding platform and TDF hydraulic folding. The computer control part adopts full computer control, bending with servo feeding, accurate positioning, especially when processing the bigger air duct, to ensure the bending accuracy.

lockmachine

Lock Former

Lock formiing machines,as one of our flagship products,including representative LC-10,LC-12 and LC-15 series,can process galvanized sheet with different thickness intovarious shapes.Normal lock formers can process galvanized sheet with thickness in the range of 0.5-1.5mm,at most 2.0mm.LC-12DR and LC-15DR can process 6 kinds of profiles. If customers need, we can design special machines to make special profiles.The machine features in light weight,so it is easy to move and suitable to be used at sites.

Rolling Forming Machine(NON-STANDARD)

Rolling Forming Machine(NON-STANDARD)

Non-standard rolling forming machines, refer to the machine that customers can order according to their drawings and technical demands. It differs from the standard machine. Each machine has the separate section bending machine function.

HVAC folding machine

Metal folding machine

HVAC square metal folding machine comes into being serialization,including hydraulic,pneumatic,manual,which offers customers many choices.

Fire damper machines

Baffler forming machine for fire damper machine

The baffler forming machine for fire damper machine adopts PLC control, LCD touch screen, human-computer interface. Realize the interaction between human and Panasonic PLC. The operator can automatically run (programmable control) and monitor the control process through the set program, so as to realize the operator to control the production line and modify the control parameters, and monitor the equipment operation status, operation parameters and fault indication in real time. The length of the work piece can be adjusted.

Duct GI manufacturing auto line

Duct GI manufacturing auto line VIII

HVAC machine Air duct production line  Ⅷ is a new type of air duct automatic production line of our company. The U-shaped structure not only saves the production site, but also reduces the delivery time of raw materials. The production efficiency is high (about 20-23 seconds per piece). The department fully automatically realizes the fixed size cutting, beading, automatic cutting ,the notching, single hem forming, pittsburgh forming, TDF flange and the angle iron flange ,automatically forming and bent into ”L“, ”U“, ”口“ shaped duct. Equipped with punching support air, TDF flange hole is optional. Pittsburgh is formed before bending the short side of the large size duct. It has the advantages of high automation, high efficiency, labor saving and material saving.
