HVAC Cornersmatic
HVAC Corner Inserting Machine is Pneumatically powered, inserts corners into single-end or both-end(optional) in seconds automatically and crimps them into place.
The main function of press brake is for metal processing industry. The products are widely used in light industry, aviation, shipbuilding, metallurgy, instruments, electrical appliances, stainless steel products, steel structure construction and decoration industries. Hydraulic bending machine is the first choice for sheet metal processing of sheet metal, especially for large sheet metal. By selecting and matching different molds, the sheet metal can be bent, stretched, pressed, punched, etc.
7.Yaskawa high efficiency AC servo motor and driver.
型号
Model
公称压力
Pressure
(KN)
工作台长
Work table
Length (mm)
立柱间距离
Distance of poles
(mm)
最大开启高度
Max open Height
(mm)
滑块行程
Stroke Distance
(mm)
侯口深度
Groone Depth
(mm)
滑块速度
Stroke Speed
(mm/s)
电机功率
Main motor
Power (Kw)
油泵排量
Pump
Displacement
(LM/R)
外形尺寸
Dimension
(mm)
重量
Gross weight
(KG)
快下
Up
工进
Work
回程
Return
长
Length
宽
Width
高
Height

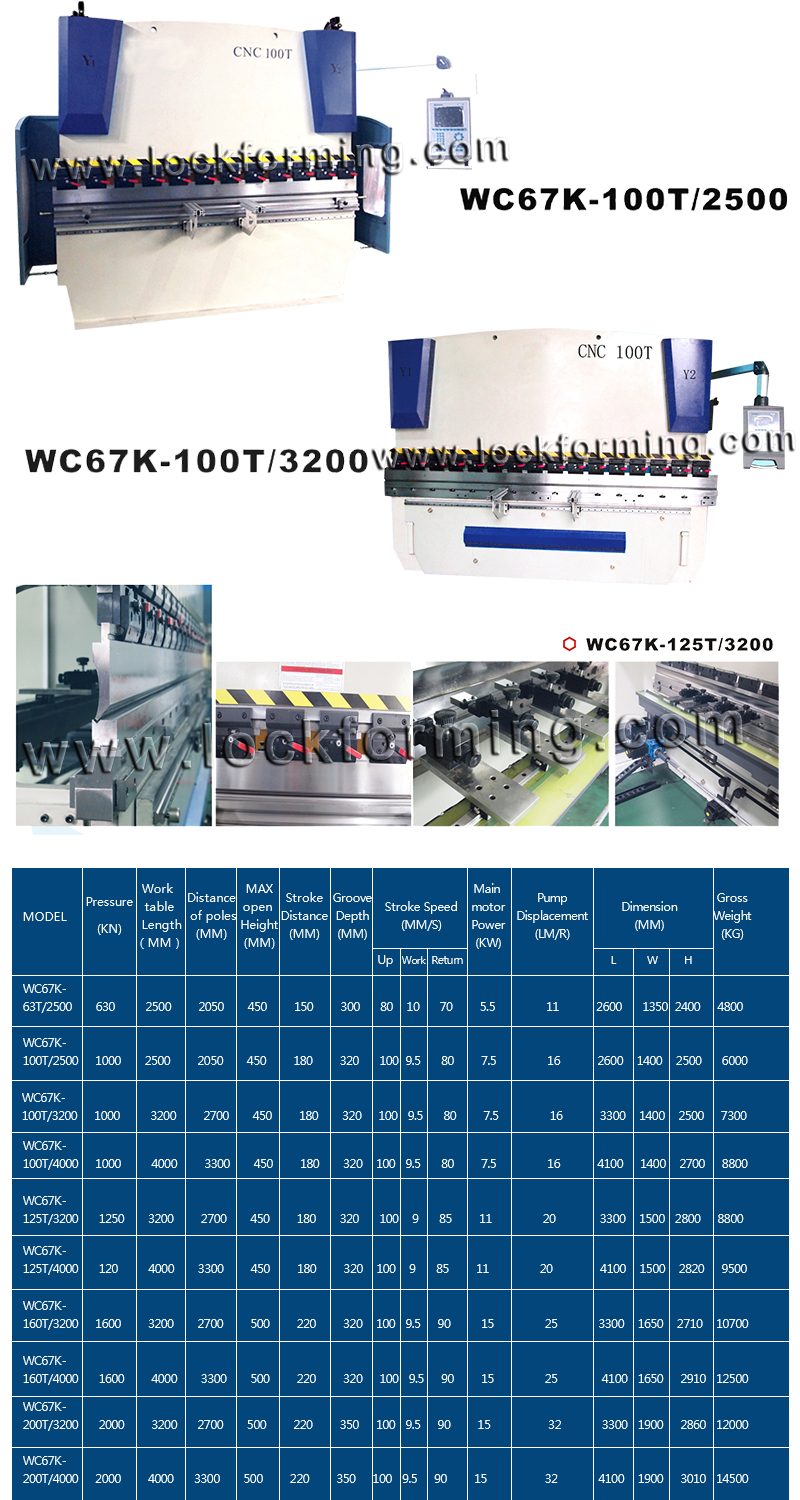

WC67K-63T/2500
630
2500
2050
450
150
300
80
10
70
5.5
11
2600
1350
2400
4800
WC67K-100T/2500
1000
2500
2050
450
180
320
100
9.5
80
7.5
16
2600
1350
2400
4800
WC67K-100T/3200
1000
3200
2700
450
180
320
100
9.5
80
7.5
16
3300
1400
2500
7300
WC67K-100T/4000
1000
4000
3300
450
180
320
100
9.5
80
7.5
16
4100
1400
2700
8800
WC67K-125T/3200
1250
3200
2700
450
180
320
100
9
85
11
20
3300
1500
2800
8000
WC67K-125T/4000
1250
4000
3300
450
180
320
100
9
85
11
20
4100
1500
2820
9500
WC67K-160T/3200
1600
3200
2700
500
220
320
100
9.5
90
15
25
3300
1650
2710
10700
WC67K-160T/4000
1600
4000
3300
500
220
320
100
9.5
90
15
25
4100
1650
2910
12500
WC67K-200T/3200
2000
3200
2700
500
220
350
100
9.5
90
15
32
3300
1900
2860
12000
WC67K-200T/4000
2000
4000
3300
500
220
350
100
9.5
90
15
32
4100
1900
3010
14500
Get A Free Quote
HVAC Corner Inserting Machine is Pneumatically powered, inserts corners into single-end or both-end(optional) in seconds automatically and crimps them into place.
With the advantages of reasonable design and structure, high precision and efficiency, flexible adjustment and convenience. Function: automatic detection coil parameters, decoiler and feeding with one key, automatic adjustment Automatic switching, automatic detection and calculation with safe and reliable
The uncoiling and leveling production line is used for various roll bending processes. After uncoiling, leveling, and cutting, flat sheets of the required width and length can be obtained. The production line consists of a feeding rack, uncoiler, leveler, conveyor, guide device, length fixing device, plastic cover plate device, shearer, and conveyor table.
Hydraulic fastener replaces screws or rivets.It is especially used in HVAC engineering,which joins two or more metal sheets together through cold extrusion without rivets,which is widely used in the western countries.
According to technical requirements from customers, we could specially make the following mechanical equipments; beading, circle rolling and anging machine for blower crust. It can complete processing once time automatically and accurately. Blower Crust Flanging Machine video：
The bending pipe welding machine is suitable for the welding application of the inner and outer arc of the stamping attachment of the land circular air pipe. The welding control unit and other aspects of the man-machine interface of the equipment are independently developed and designed, including the important welding elements such as welding current and speed,and the digital display of the man-machine interface is fully realized.And for the welding characteristics of galvanized sheet steel, in the welding control of the design of a unique welding curve, so that it can be more reliable to complete the professional needs of galvanized sheet welding.
Circle angle iron forming machine employs coil to form angle iron flange then cut off the processed work pieces with pleasant appearance and accurate dimensions. The equipment has advantage of compact structure and easy operation.Angle iron punching machine can be matched with the angle iron forming machine to produce perfect circle angle iron.
HVAC duct fabrication machine Ⅲ features in high auomation,high efficiency and saving materials,which is very suitable for mass production of square ducts. Autoline - III consists of a metal feeding frame, leveling and grooving equipment, hydraulic punching square notch equipment, hydraulic cutter and folder. The electrical control system uses a computer with a closed-loop and servo-system to increase the precision and reliability of the manufacture line. The maximum working speed is 16m/min.The length tolerance is±0.3mm. The diagonal line tolerance is ±0.5mm. One team will produce 1000㎡of square duct by using this system.
The 3-roller bending machine features the diamond structure and is used for thicker sheets. The upper roller can be lifted to facilitate plate removal.It is cut into two kinds:symmetric and asymmetric.
Angle notching machine is used for notching in making square metal boxes. It is convenient,accurate and with high efficiency. The machine covers hand-operated, pedal and hydraulic types. It is applicable in such industries as medical industry.
Product features: copper crankshaft structure, rigid key clutch,two hands protection starting device, automatic oiler, automatic cylindercontrol switch.Different molds choose diferent punch presses,semi-automatic molds. full automaticmolds (including feeding rack, leveling machine, servo feeding) 40 Ton TDF automatic corner punching machine video： 63 TON TDC automatic corner punching machine video： 名称 Description 技术参数 Specification 型号 Type JG23-40D JC23-63D J23-80D 公称力 Nominal force kN 400 630 800 滑块行程 Slide stroke mm 20-120 20-120 10-130 行程次数 SPM min⁻¹ 55 55 50 最大装模高度 Max die height mm 210 220 270 装模高度调节量 Die height adjustment mm 70 80 80 工作台板尺寸（前后×左右） Bolster(F·B×L·R) mm 400×660 450×700 480×780 工作台板落料孔尺寸（上孔直径×深度×下孔直径） Bolster opening(up dia × depth × low dia) mm Φ220×25×Φ180 Φ200×45×Φ180 Φ200×45×Φ180 工作台板厚度 Bolster thickness mm 80 90 100 机身工作台孔尺寸（直径×前后×左右） Bed opening(Dia×F·B×L·R) mm Φ200×150×300 Φ250×200×340 Φ250×200×340 模柄孔尺寸（直径×深度） Shank hole (Dia×Depth) mm Φ50×70 Φ50×80 Φ60×75 立柱间的距离 Bettween columns mm 250 280 320 主电机功率 Main motor power kW 3 4 5.5 外形尺寸（前后×左右×高） Outline dimension(F·B×L·R×H) mm 1200×1100×2300 1500×1300×2500 1800×1600×2650 重量 Weight(KG) 2500 3200 4200
Air duct production line Ⅷ is a new type of air duct automatic production line of our company. The U-shaped structure not only saves the production site, but also reduces the delivery time of raw materials. The production efficiency is high (about 20-23 seconds per piece). The department fully automatically realizes the fixed size cutting, beading, automatic cutting ,the notching, single hem forming, pittsburgh forming, TDF flange and the angle iron flange ,automatically forming and bent into ”L“, ”U“, ”口“ shaped duct. Equipped with punching support air, TDF flange hole is optional. Pittsburgh is formed before bending the short side of the large size duct. It has the advantages of high automation, high efficiency, labor saving and material saving.
