HVAC Spiral Tube Forming Machine

The spiral air duct machine is divided into molding type of rolling cutting and steel strip of saw cutting. The molding of corresponding size must be used for each size of spiral air pipe. For the steel strip type,adopt different specifications and lengths of steel strip, can process the corresponding size of air duct.
  • Product Details

Character:

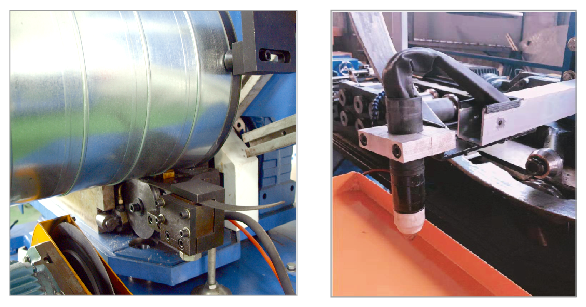

HVAC Spiral Tube Forming Machine is cut into two kinds: mold type and screw type.The outstanding flying slitter cuts the tubes to length without noise or hot sparks as known from the saws and provide smooth tube end without deburing.

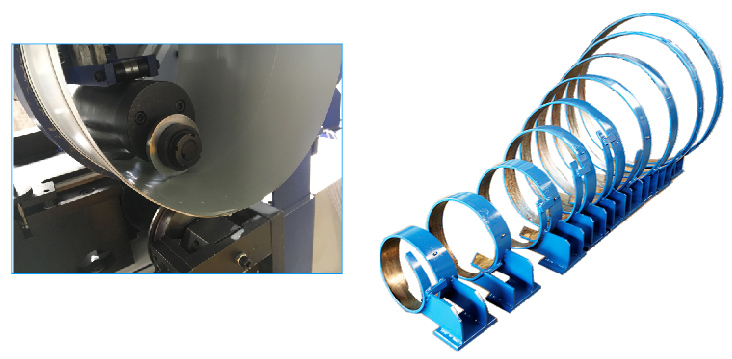

1. Special mould for various tube diameters, very easy to change and adjust, no need crane or too much manpower
2. Large diameter range
3. High speed synchro flying cutting system
4. Panasonic PLC control, convenient operation
5. Light and small, site work
6. Perfect swage, without leakage

Spiral Tube Forming Machine With Saw Cutter Video:

Spiral Tube Forming Machine With Roller Cutter Video:

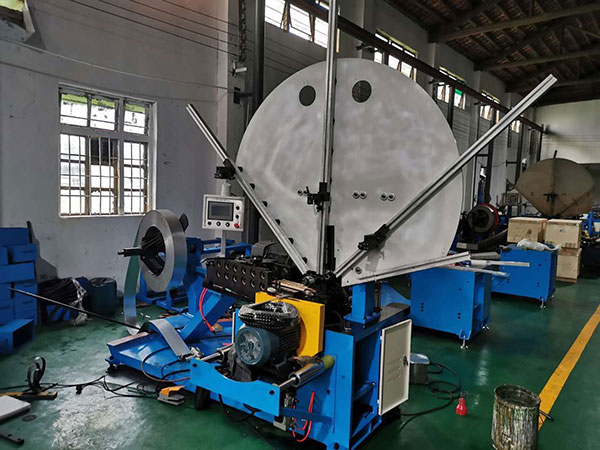

Machine Detail:
