LOCK,A large-scale professional manufacturer of air duct equipment and fire damper machines with over 20 years of history in China has agreed to visit Saudi Arabia and Egypt in September 2024. If you have any requirements for air duct equipment and fire damper machiens, please feel free to contact us at any time. We will visit you and provide you with professional air duct manufacturing solutions.
Read More
The customer trusts us enough to place such a large order, which also means we have the ability to serve our clients! If you are interested, please feel free to contact me WhatsApp&WeChat: 0086 19102017058 Email:sales@lockforming.com Website:www.lockforming.com
Read More
After-sales Service:We offer free for life online training and engineer can also go to your factory to install the machine and give training.
Read More

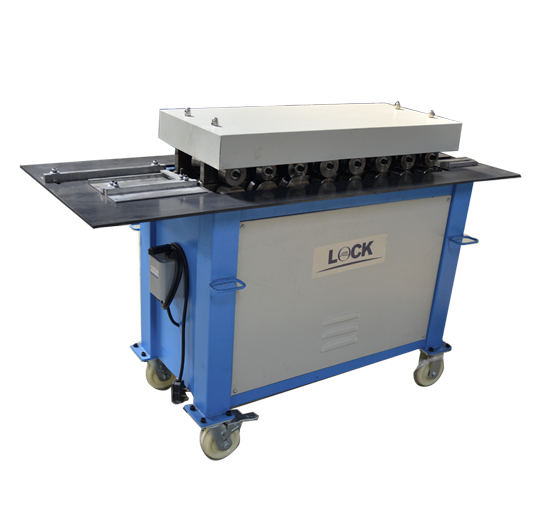

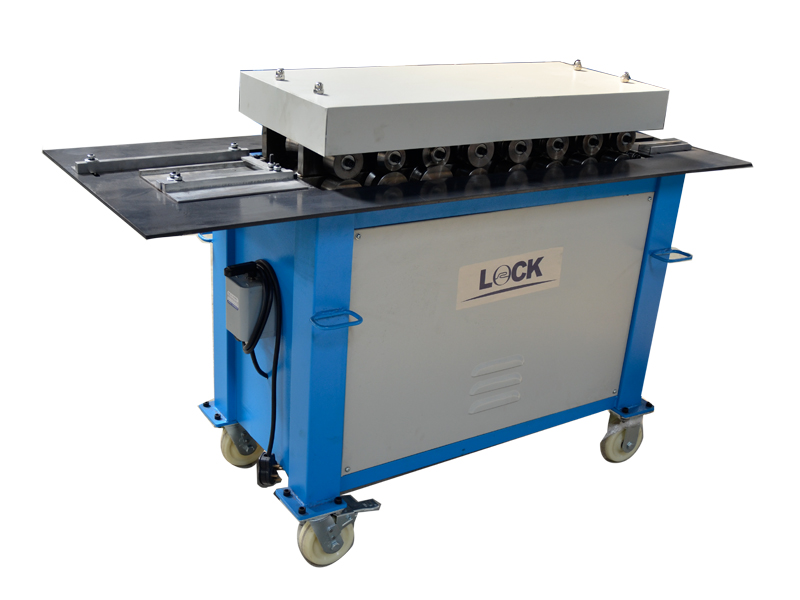

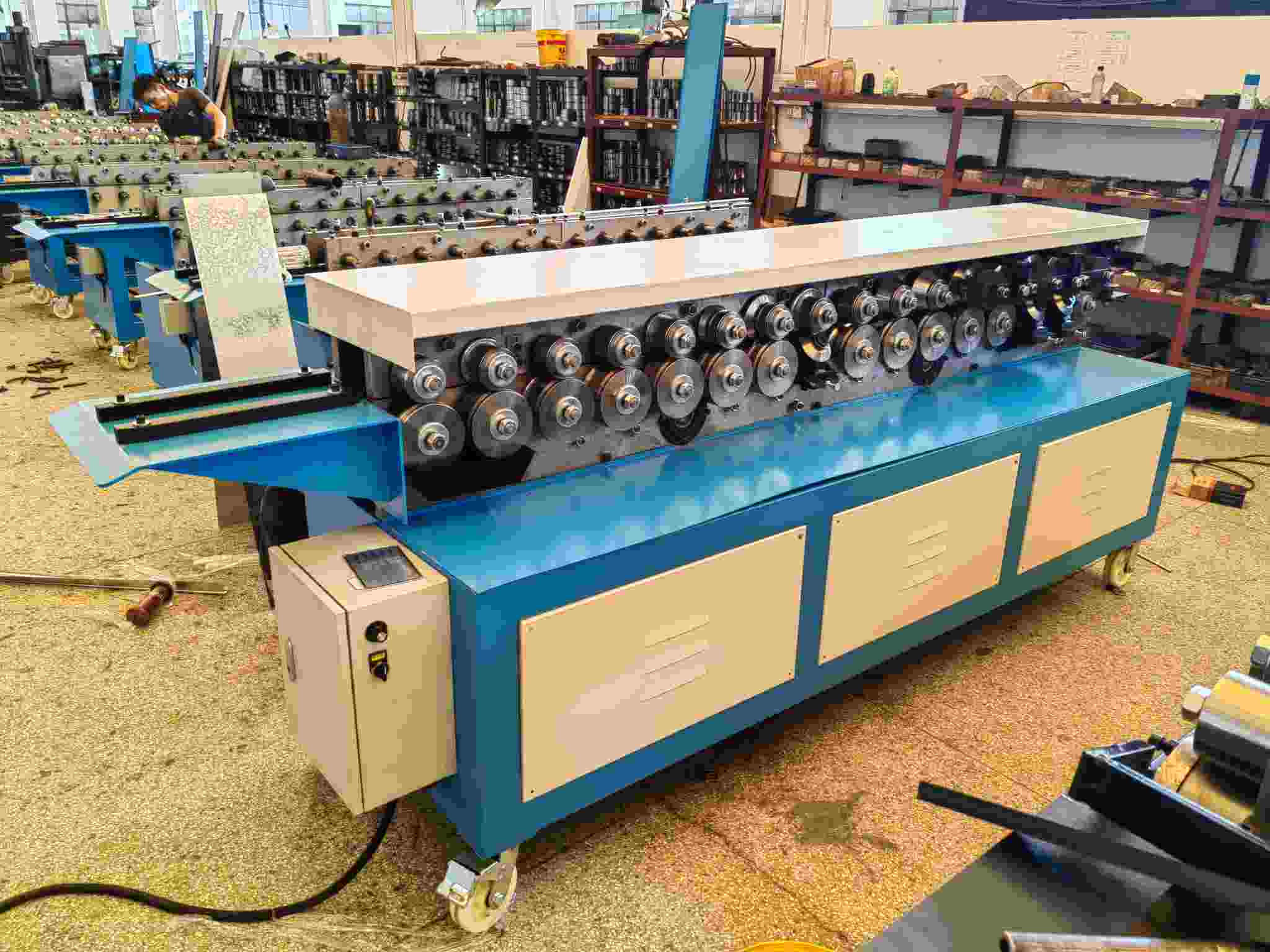

The TDF Flange Machine is a special equipment for forming the flange on the plate connection port of the air duct itself. The common plate flange system is one of the two major flange connection systems for air duct production in the world. It has the characteristics of low cost, good sealing performance, simple and convenient installation, and is especially suitable for the production of air ducts with small cross-sectional areas. The common plate flange system can be used in large-scale industrial production and is a high-efficiency air duct flange system. The combination of the common plate flange machine and the seaming machine, the beading machine, the shearing machine, the folding machine, etc. can form a fully automatic air duct production line.
Read More
The fire damper is an important safety device in the air-conditioning system, and its fusing shut-off temperature is 70°C. When the fire damper is manufactured, the thickness of the shell steel plate should not be less than 2 mm to prevent the deformation of the shell from affecting the closure of the valve plate in a fire state. The movable parts such as valve bearings must be made of corrosion-resistant materials such as brass, bronze, stainless steel and galvanized steel, so as to avoid failure due to corrosion affecting the action of valve parts in the event of a fire. The fusible sheet of the fire damper is a key component and must be made of regular products instead of nylon rope or film. The inspection of the fusible sheet should be carried out in a water bath, and the allowable deviation between its melting point temperature and the design requirement is -2. The fusible strip is to be installed on the windward side of the valve plate. After the production is completed, an air leakage inspection should be done to ensure that the valve plate is tightly closed and can effectively isolate the air flow.
Read More

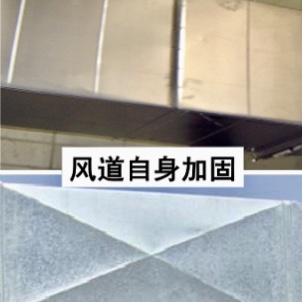

Reinforcement method of Air Duct ⑴ Processing and reinforcement of shaped straight air ducts The length of circular straight air ducts is determined comprehensively according to the system processing and installation sketch considering the convenience of transportation and installation, standard specifications of plates, and material saving. Generally, it should not exceed 4m. The circular air duct itself has high strength, and the reinforcement of the air duct itself is generally no longer considered.When the diameter is greater than 700mm and the distance between flanges at both ends is large, a 25×4 flat steel reinforcement ring is added every 1.2m and fixed on the air duct with rivets. ⑵ Processing and reinforcement of rectangular air ducts The rectangular straight air ducts can be processed and manufactured after blanking;When the total length around the air duct is less than the standard width of the plate, that is, when the entire width of the steel plate is folded and formed, only one corner bite can be provided;When the width of the plate is less than the circumference of the air duct and greater than half of the circumference, two corner bites can be provided; when the circumference of the air duct is large, four corner bites can be provided at the four corners of the air duct.
Read More
